23

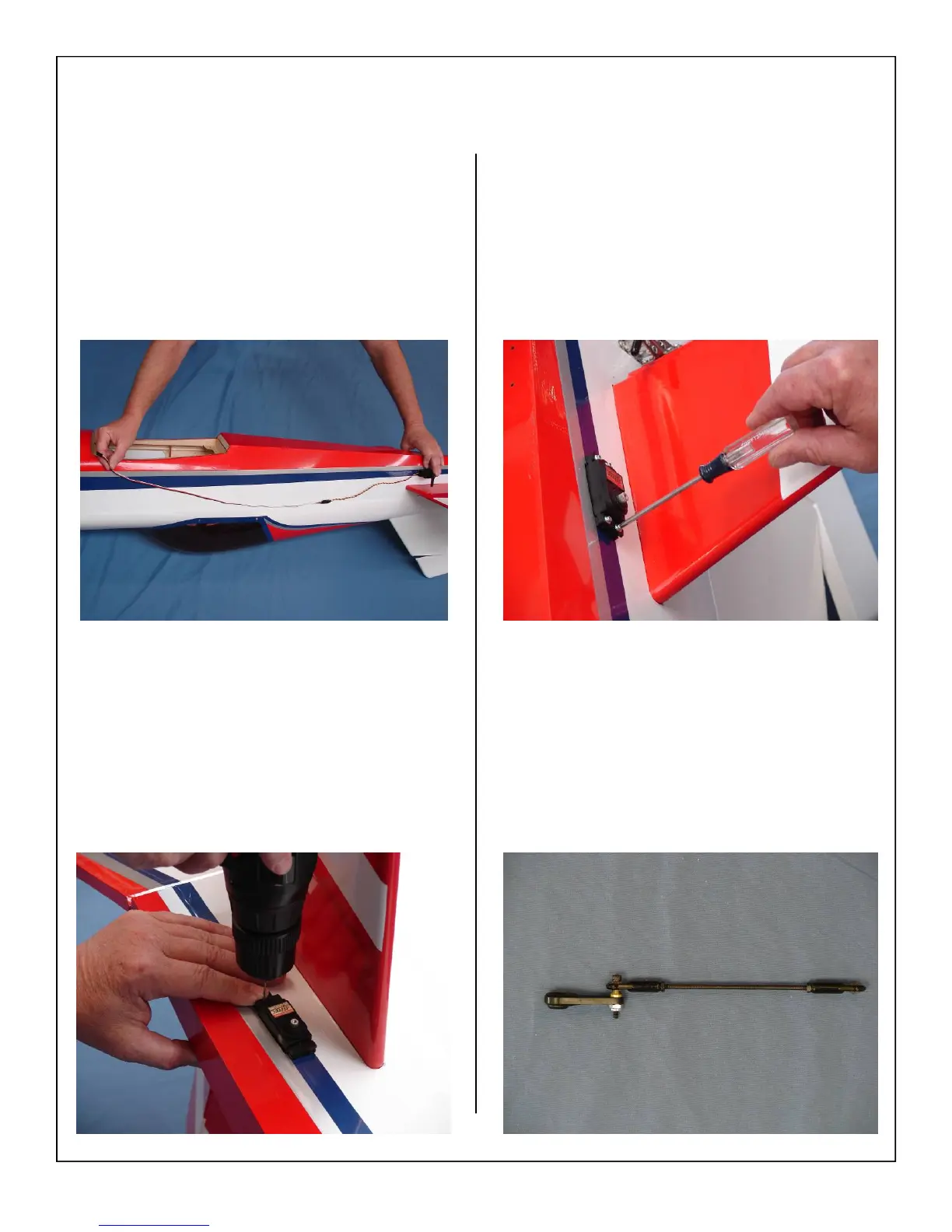

Elevator Servos and linkage
Installation
1. Attach the 24” extension to the servo lead and
secure with safety wire, string, tape, or other
method. Ensure the plugs will not come apart
from vibration or light tension.
Test fit extension length prior to installation.
2. Mark and use a 1/16 bit to drill the elevator
servo mounting holes.
3. Mount elevator servo with output shaft facing
forward.
4. Assemble elevator pushrod with servo output
arm as shown.
