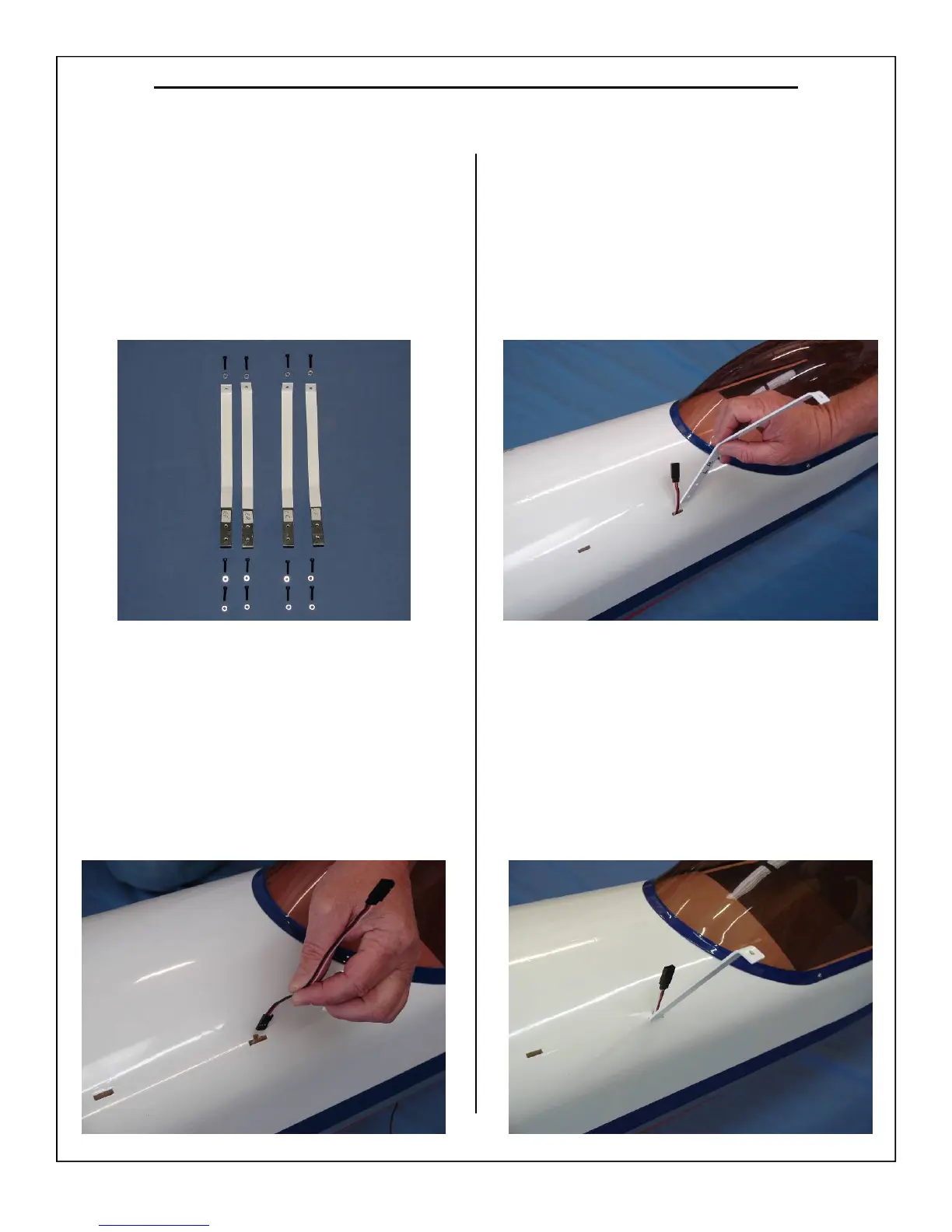

1. Gather the Inner cabane and mounting hardware
as shown.
(4) Aluminum Inner Cabanes
(12) 6-32 x 15mm Hex head bolts
(8) #6 Flat washers (Fuse mounting)
(4) #6 Bonded washers (Top Wing mounting)
INNER CABANE AND OUTTER STRUT INSTALLATION
2. Before installing the inner cabane we recom-
mend inserting a 6” extension into the provided
slot at the rear cabane. This will make for a easy
and clean servo wire installation for the top wing
ailerons
Note: There is a small slot provided for the
extension to pass through.
3. Insert the rear cabane into the pre made rear slot
of the fuselage.
Note: To ensure a quick and correct installation of
the inner cabane’s they have been
pre marked from the factory.
Left Front LF Right Front RF
Left Rear LR Right Rear RR
4. Rear Inner cabane installed with servo extension
shown below.
