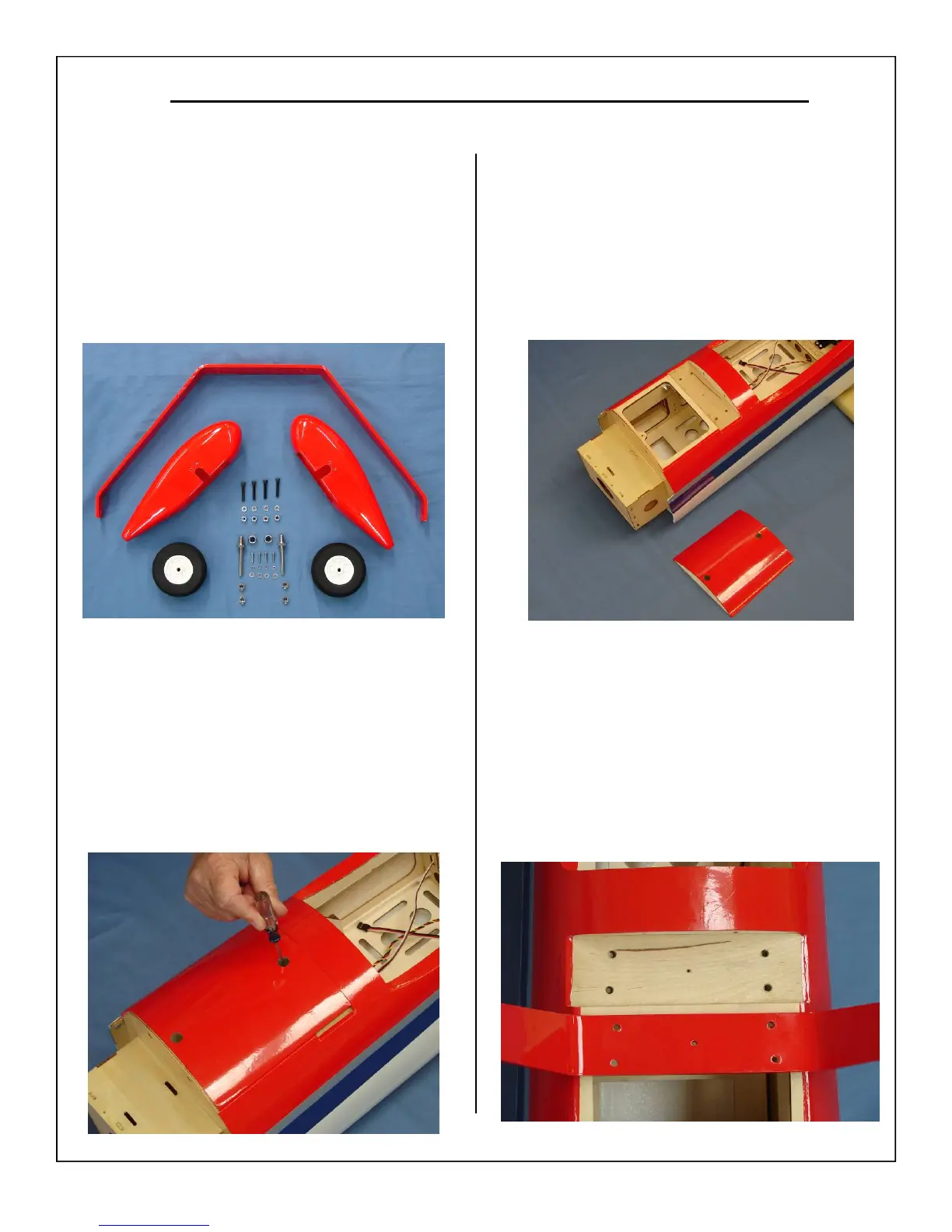

1. Gather the landing gear parts as shown below.
(1) landing gear strut, (2) wheels, (2) axle as-
semblies, (2) wheel pants and landing gear
mounting hardware.
2. Remove bottom hatch cover.
3. Fuse shown with hatch cover removed
4. Align mounting holes of main landing gear with
pre drilled mounting holes in fuselage mounting
plate.
Note: Mounting holes have been offset to ensure
proper installation of main gear.
MAIN LANDING GEAR AND WHEEL PANT ASSEMBLY
