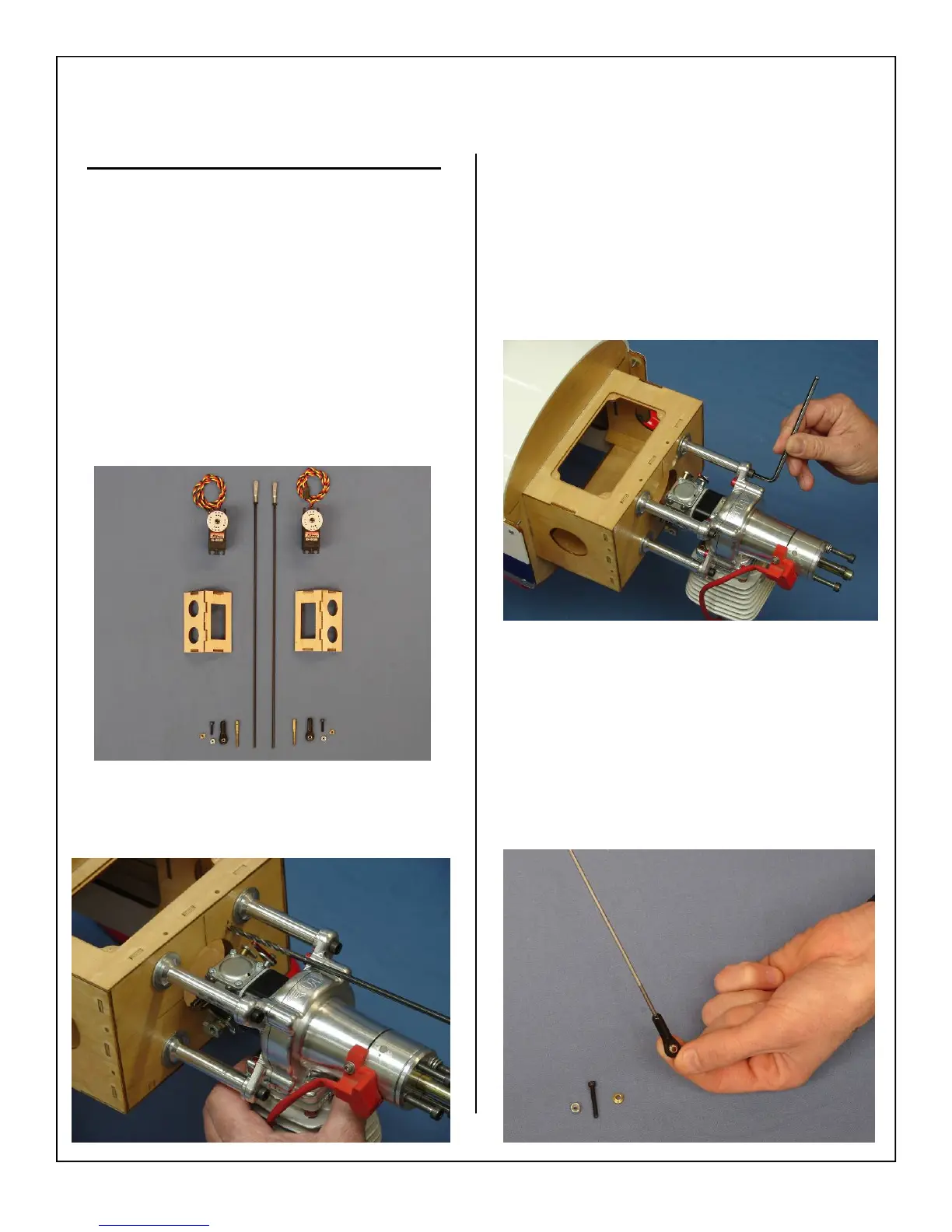

Throttle Servo and Choke Installation
1. Gather the left and right plywood throttle and
choke servo mounting trays, the throttle and
choke servos and pushrod parts as shown
below.
2 x 4-40 metal rods thread at one end
2 x 4-40 ball links and hardware
2 x brass spacers
2 x 4-40 threaded solder couplers
2 x 4-40 threaded quick links
Note: Plywood servo trays will not be necessary
for the DA50 installation. However, have
been supplied for alternative engine
installations.
2. Use a 1/4” bit to drill a pushrod exit hole in the
firewall in line with the engine carburetor throt-
tle arm.
3. It is recommended to remove the top engine
mounting hardware from the same side as your
throttle arm. This will make attaching the ball
link to your throttle arm much easier.
4. Assemble ball link to threaded end of pushrod.
Note: Thread ball link half way onto pushrod to
allow for proper adjustment during final
installation.
