25

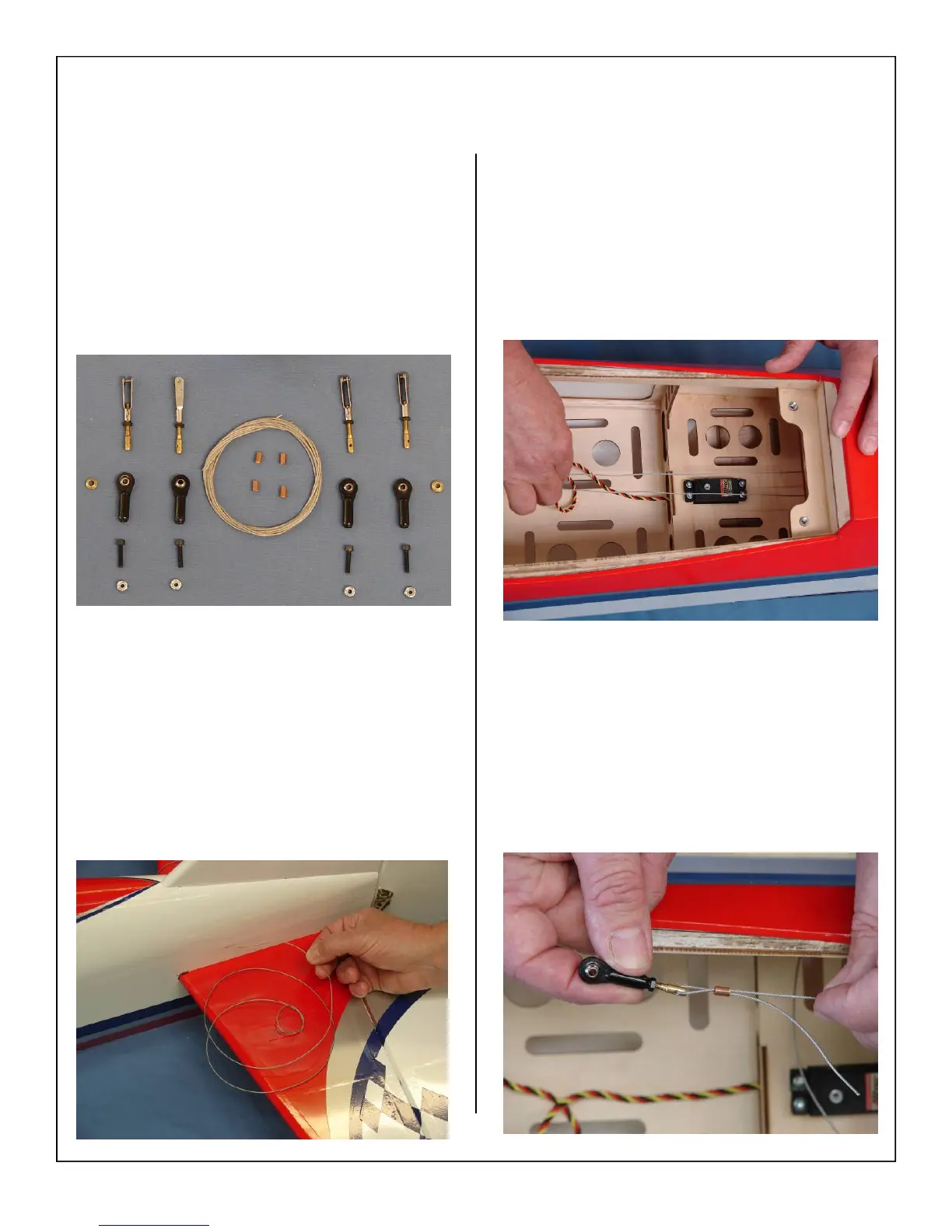

3. Gather the rudder control linkage parts shown
2 Rudder cables
4 4-40 ball link assemblies
2 Brass spacers
2 Threaded metal RC links (Not Used)
4 Threaded couplers
4 Brass swaging tubes
4. Locate the pre installed cable exit tubes at rear
section of fuse and pass end of cable through.
5. Pull the rudder cables from rear of fuse to the
rudder servo tray.
Note: Do not cross cables inside of fuselage.
6. Insert rudder cable through the brass swage tube,
then through the threaded coupler hole, and back
through the brass swage tube as shown.
