9 / 34

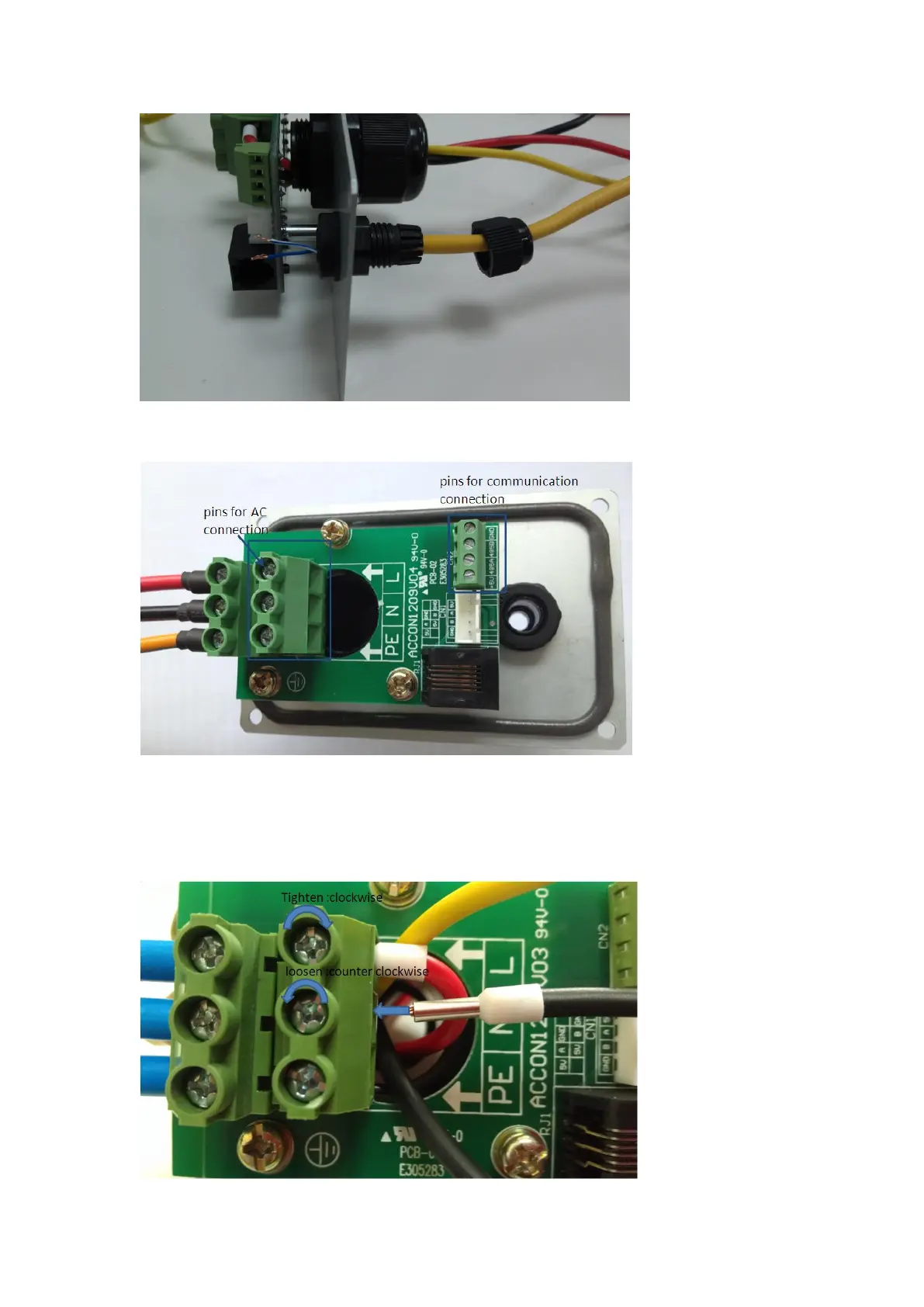

The following figure shows the assignment of the individual connection areas on the
reverse side of the cover plate.
Connection to the Public Grid:
Loosen the screw to end in counter-clockwise, insert the cable with tube into the
socket, then tighten the scew to end in clockwise. make sure the wires are securely
connected.
