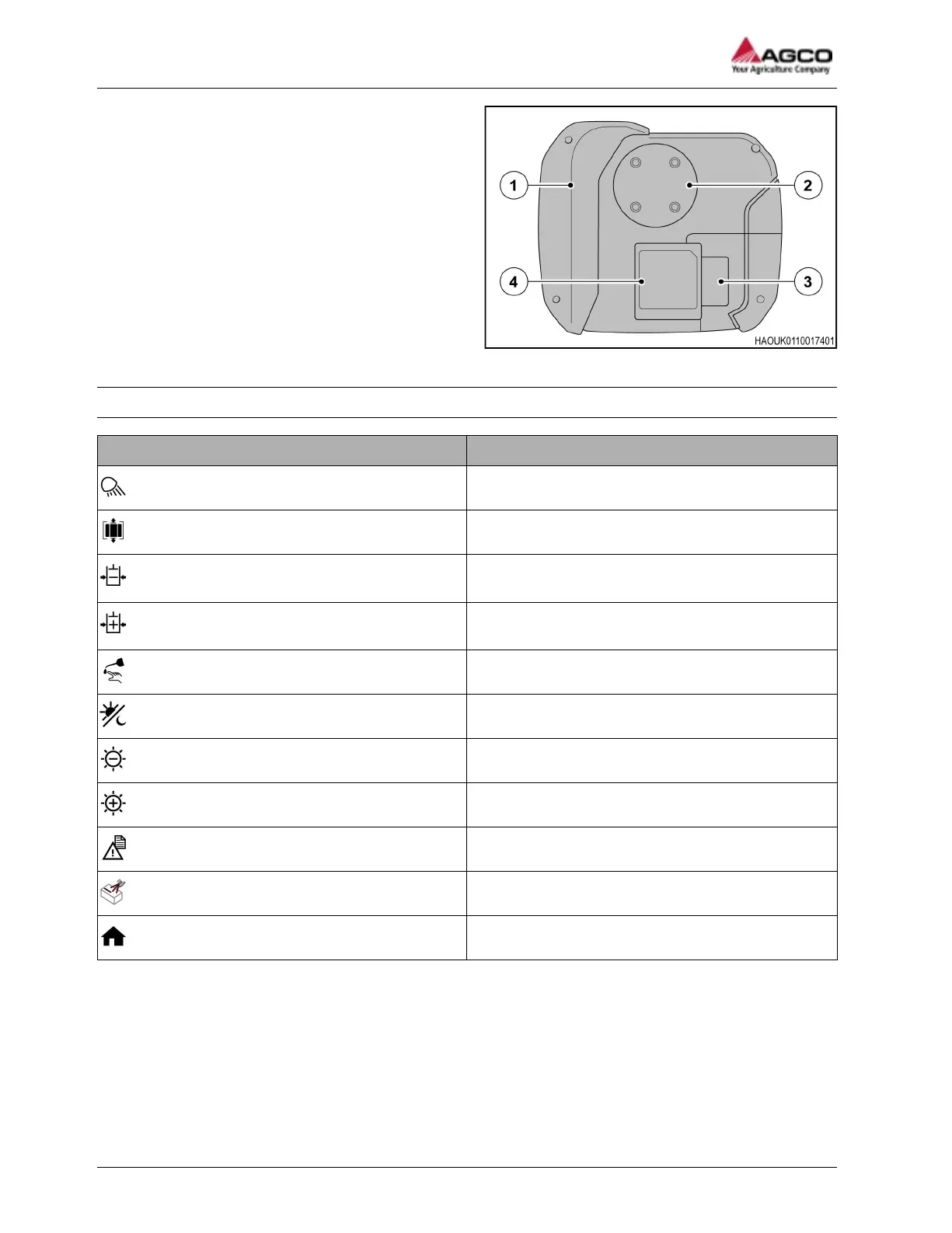

Fig. 3
(1) Side area to hold with hand
(2) Mounting bracket surface
(3) 48 pin electrical connector
(4) Identification decal
1.3.3 Operation buttons
Icon Description
Work lamp ON/OFF
Bale chamber pressure reduction
Bale density decrease (You can set the increments of
the change in the hydraulic density control setup.)
Bale density increase (You can set the increments of
the change in the hydraulic density control setup.)
Knotter lubrication pump ON/OFF
Day/Night mode
Screen brightness decrease
Screen brightness increase
Alarm page
Dye marker
Return to the home screen
1 General
14 SimplEbale
79037906A
