AGCO SimplEbale - 4.3.6 Diagnostics

80 SimplEbale
79037906A

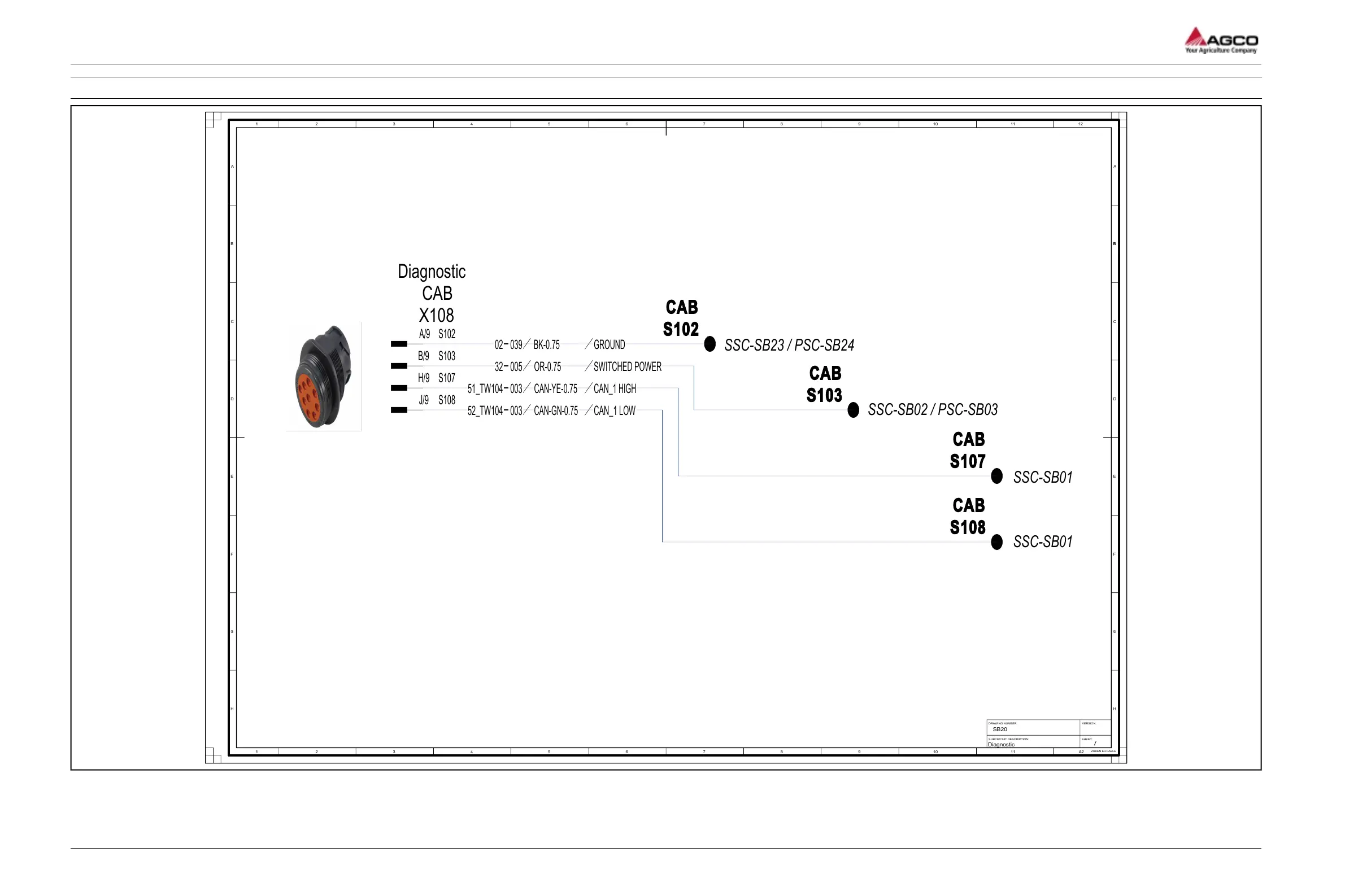

4.3.6 Diagnostics
Fig. 7
A
11 12108 97653
A
2 1 4
C
D
E
F
G
H
11 A2108 9
C
E
D
765
F
G
3 1 2
H
4
B BB
ZUKEN E3.CABLE
DRAWING NUMBER: VERSION:
SUBCIRCUIT DESCRIPTION: SHEET:
/
SB20
Diagnostic
B/9
H/9
J/9
A/9
X108
CAB
S102
CAB
S103
CAB
S107
CAB
S108
CAB
Diagnostic
SSC-SB23 / PSC-SB24
SSC-SB02 / PSC-SB03
SSC-SB01
SSC-SB01
S103
S107
S108
S102
BK-0.75 GROUND 02 039
OR-0.75 SWITCHED POWER 32 005
CAN-YE-0.75 CAN_1 HIGH 51_TW104 003
CAN-GN-0.75 CAN_1 LOW52_TW104 003
4 Diagrams
