AGCO SimplEbale - 1.6 Troubleshooting; 1.6.1 Baler diagnostics page

1.6 Troubleshooting
1.6.1 Baler diagnostics page

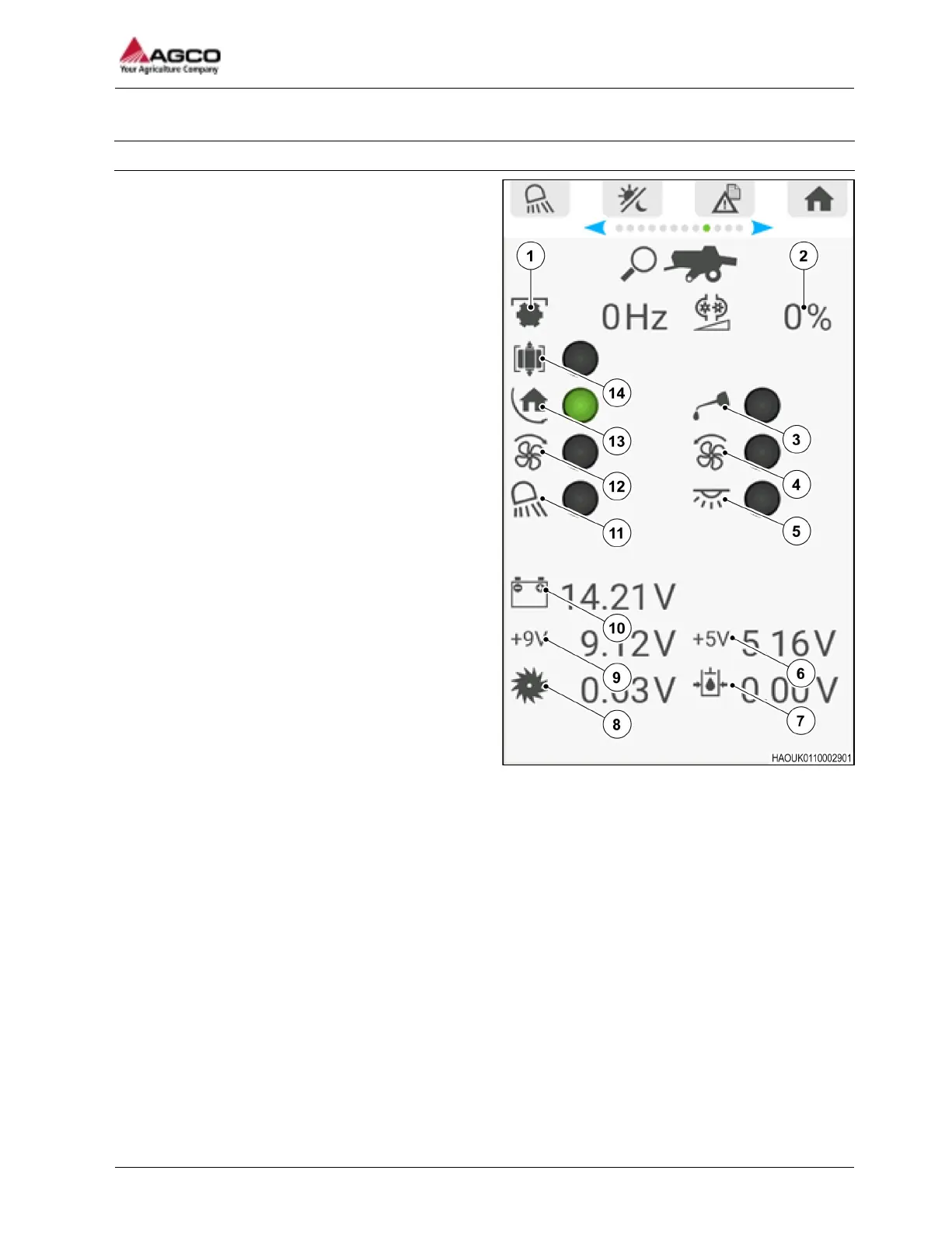

Fig. 11
(1) PTO speed sensor
(2) Hydraulic duty cycle
(3) Knotter lubrication output
(4) Fan reverse output
(5) Service lamp output
(6) 5 V sensor supply
(7) Hydraulic pressure sensor
(8) Star wheel sensor
(9) 9 V sensor supply
(10) Battery voltage
(11) Field lamp output
(12) Fan forward output
(13) Needle carriage home status
(14) Chamber pressure reduction cycle
