The user interface
Main components of the Digitizer
The main components of the CR 75.0 are:
" Cassette input buffer
The cassette input buffer accepts up to 10 cassettes - even of different sizes -
for digitizing and up to 9 cassettes for erasure.
" Keypad
As the handling of the cassettes is fully automated, normal operation is a
zero-button operation. The keys on the keypad are only used to activate
special functions such as reading an emergency image plate or erasing an
image plate.
" Status indicator
A light indicates the status of the CR 75.0.

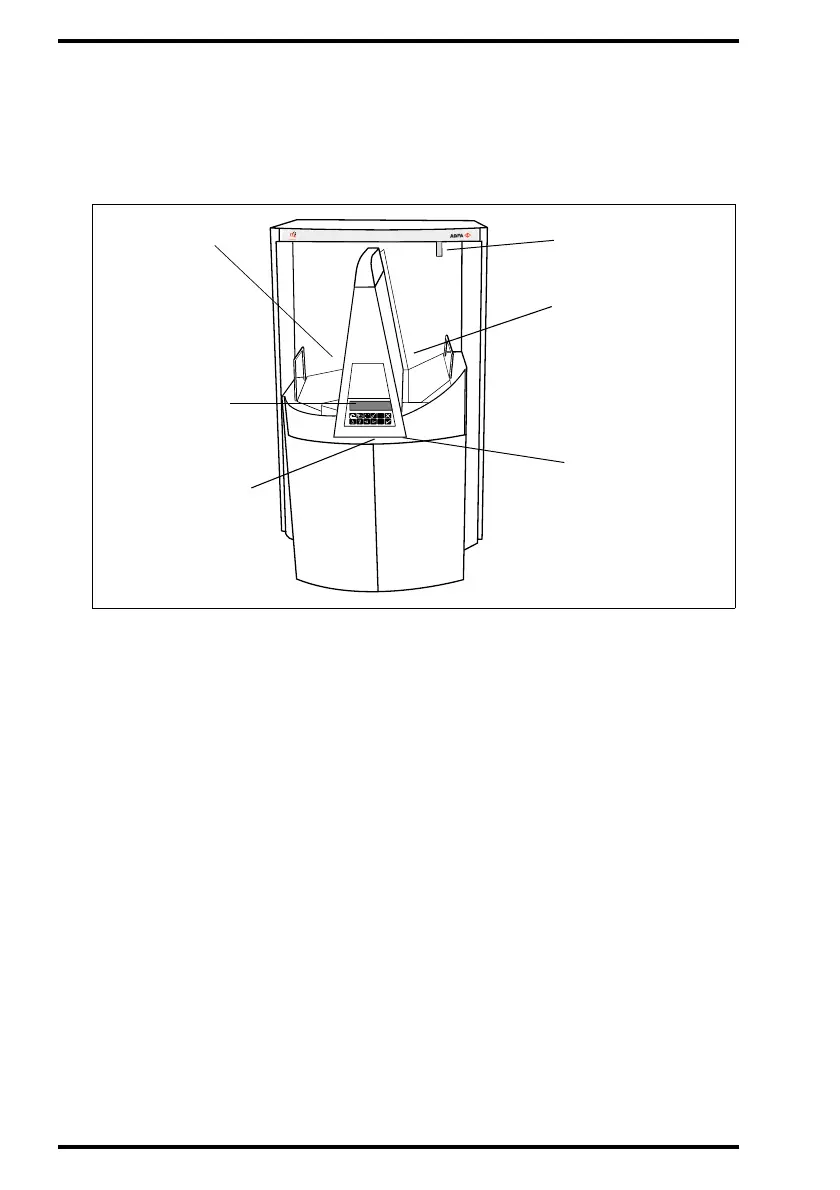

CR 75.0
MUSICA
Cassette
input buffer
Cassette
output buffer
Keypad
with display
Service connector
Main switch
Status indicator
