39
2321 E EN 20130722
DX-G/DX-M

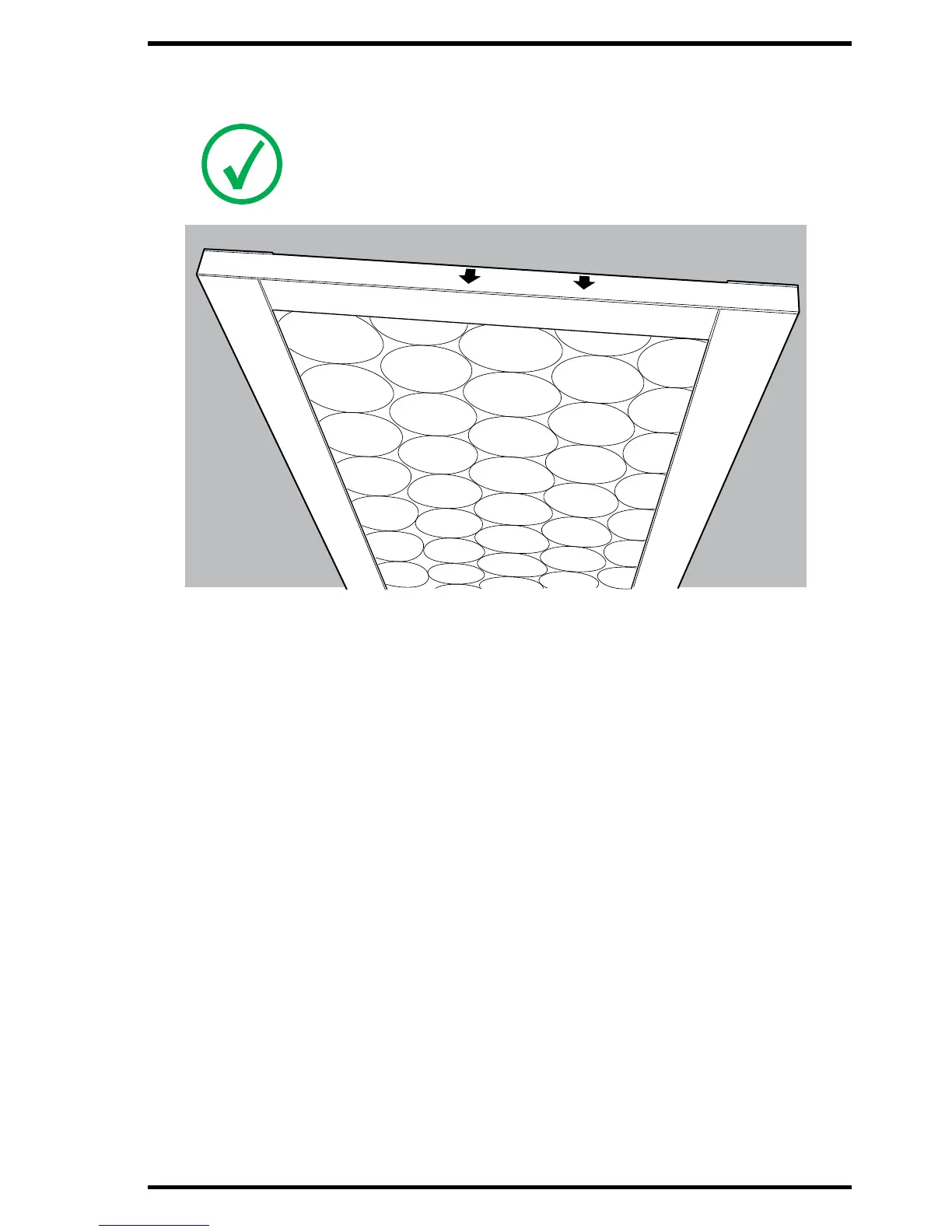

8 Mount the air-filter element inside the rights side door as illustrated below.
9 Put back the air-filter frame.
• Insert the left side of the air-filter frame into the provided holes (4).
• Lock the right side of the air-filter frame using the 2 clamps (5).
Note: Mind the air flow arrows imprinted on the air filter when positioning
the air-filter inside the door. The air flow arrows should always point to the
inside of the machine.
