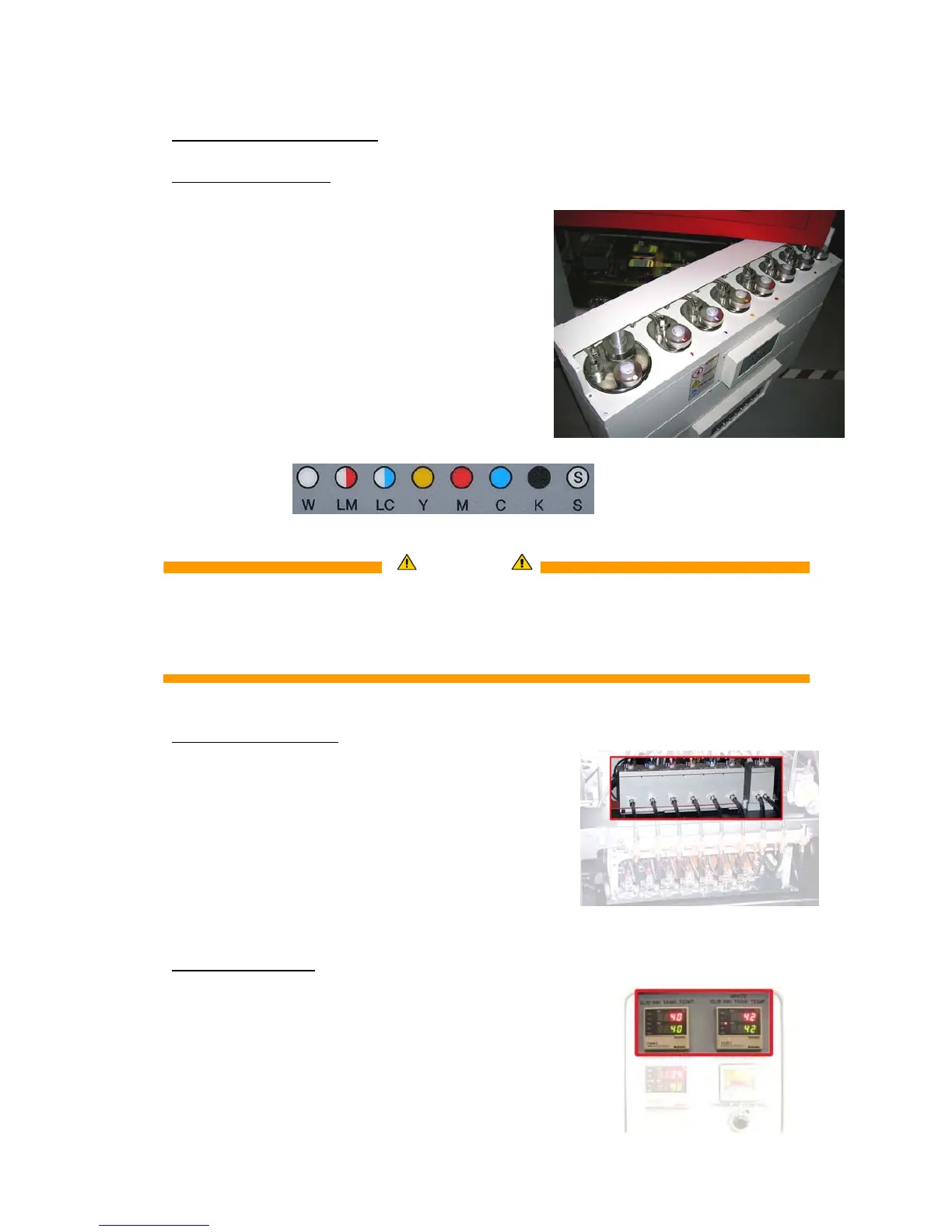

5. Ink Circuit.
5.1. Main ink tanks
- The main ink tanks are located on the right
side of the engine.
- 1.6 liter per color
- Low level detection at 0.3l. (± 4h to print)
Audible & visual alarm on the Signal tower.
- Ink can be refilled in while printing
- White ink tank has a continuous working
stirring rod inside.
- Tanks:
WARNING
ONLY refill with the 1liter bottle, when the low level alarm goes off.
At that point, you can pour in a complete 1L bottle, and you won’t have any
left over ink remaining in the bottle!!
5.2. Auto ink supply
- From the ink tank, ink is pumped into
the “Sub ink tank”, which is positioned
on the Head Carriage.
- The Sub ink tank is temperature
controlled, and has a content
of 35ml per color
5.3. Sub Ink Tank
- Temperature setting “Sub Ink Tank”
Color: 38°C
White Ink: 40°C when in use (up to max 45°C)
35°C when not in use
To Next Page
