1200 Series Quarternary Pump User Manual 123
Identifying Cables
9

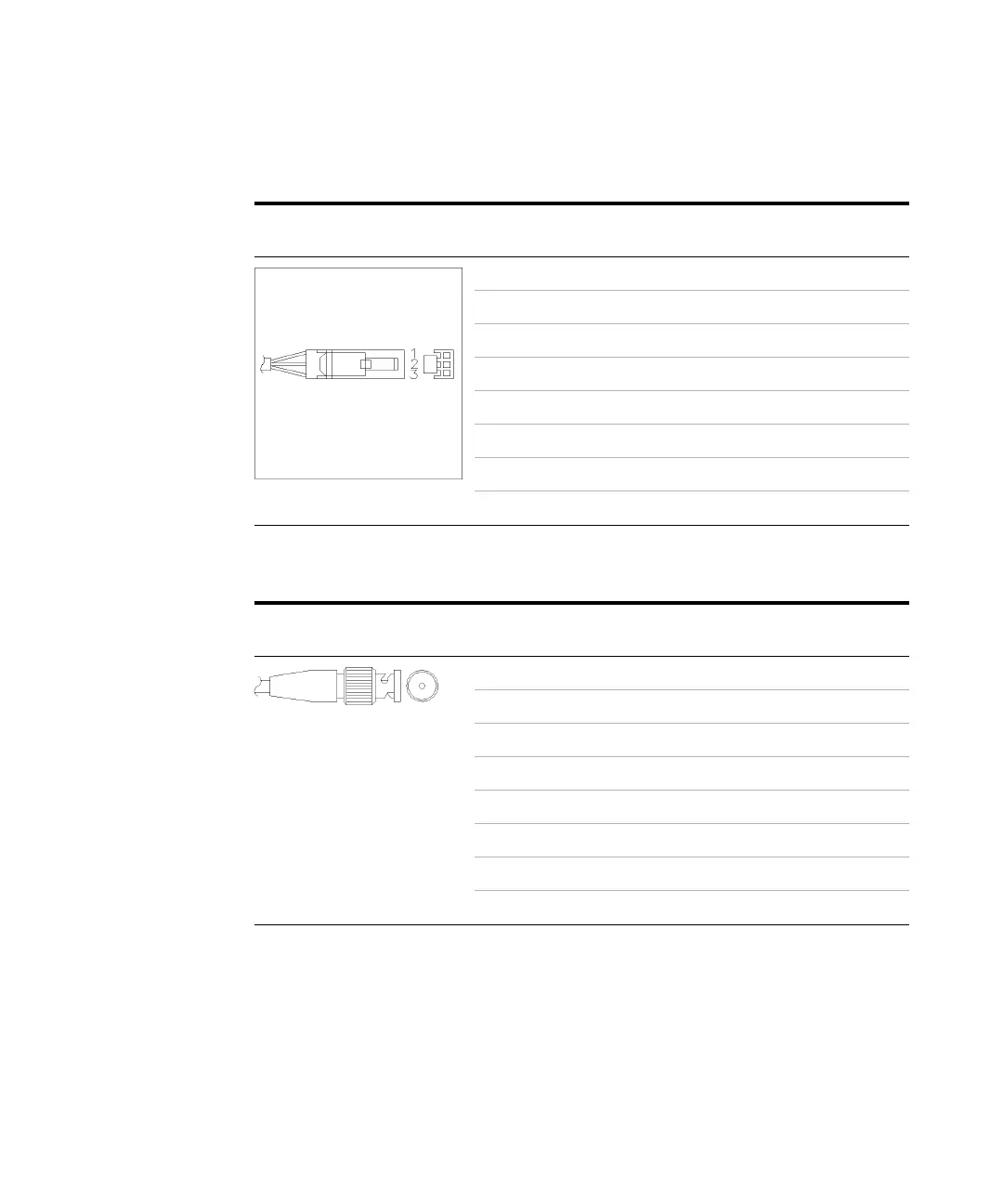

Analog Cables
Agilent 1100/1200 to 3394/6 Integrators
Agilent 1100/1200 to BNC Connector
Connector35900-60750 Pin 3394/6 Pin Agilent
1100/1200
Signal Name
1 Not connected
2 Shield Analog -
3CenterAnalog +
Connector8120-1840 Pin BNC Pin Agilent
1100/1200
Signal Name
Shield Shield Analog -
Center Center Analog +
