1200 Series Quarternary Pump User Manual 41
Installing the Pump
3
Flow Connections of the Quaternary Pump
Flow Connections of the Quaternary Pump
1 Remove the front cover by pressing the snap fasteners on both sides.

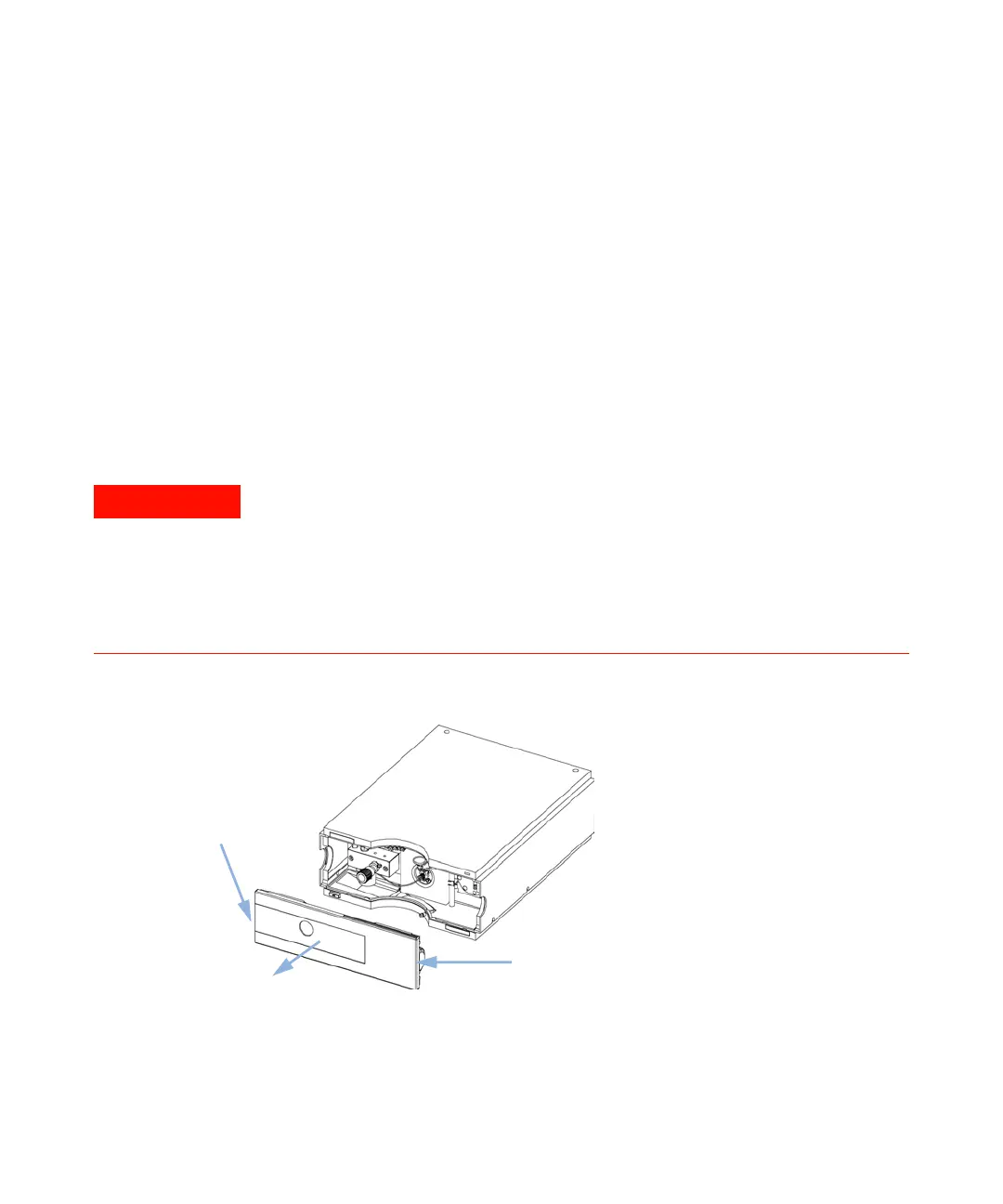

Figure 8 Removing the Front Corver
Tools required Two wrenches 1/4–5/16 inch for capillary connections
Parts required Description
Other modules
Parts from accessory kit, see “Accessory Kit Contents G1311-68705” on page 31
Preparations • Pump is installed in the LC system.
When opening capillary or tube fittings solvents may leak out.
The handling of toxic and hazardous solvents and reagents can hold health risks.
➔ Please observe appropriate safety procedures (for example, goggles, safety gloves
and protective clothing) as described in the material handling and safety data sheet
supplied by the solvent vendor, especially when toxic or hazardous solvents are
used.
