Agilent Technologies 33220A User Manual

39
Chapter 2 Front-Panel Menu Operation

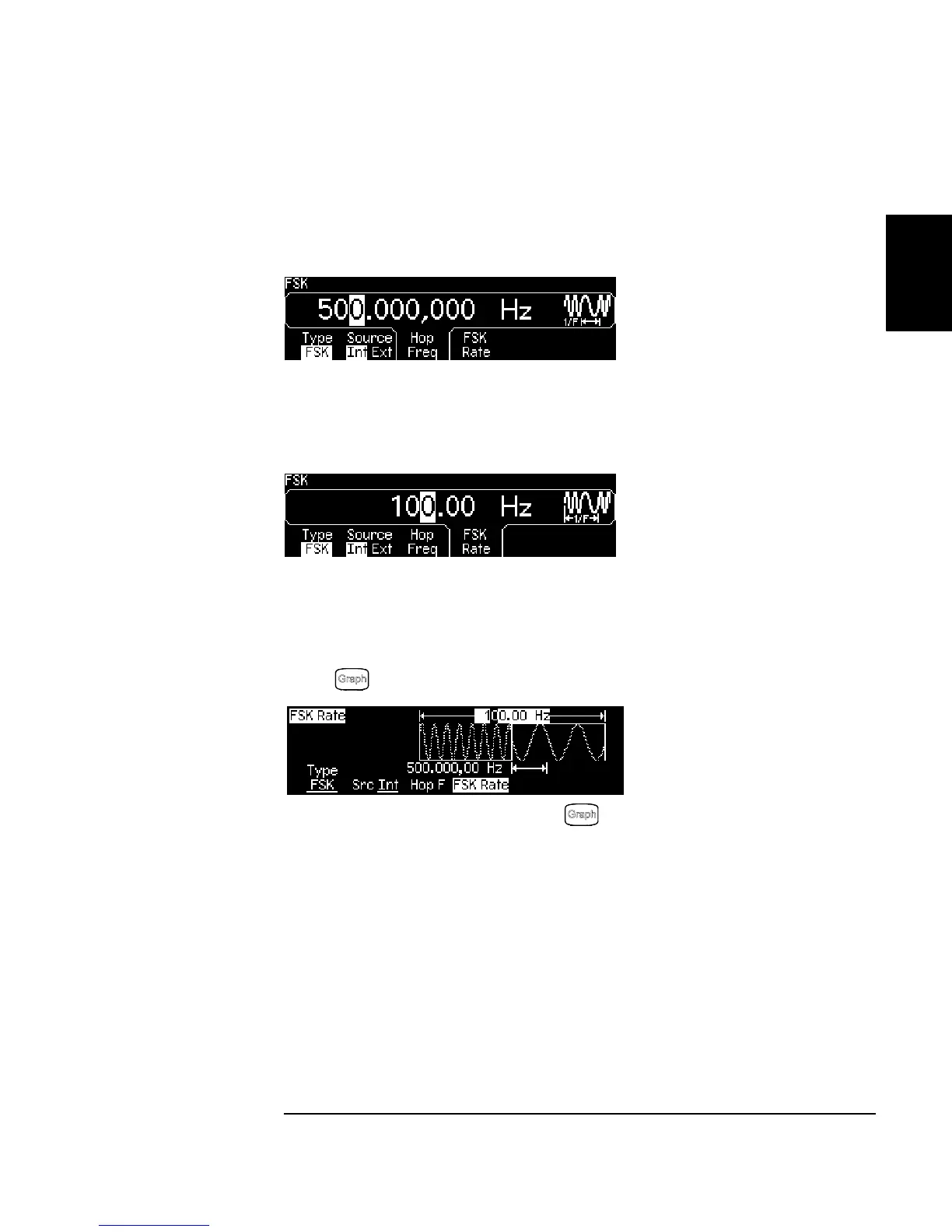

To Output an FSK Waveform
4
2
3 Set the “hop” frequency.
Press the Hop Freq softkey and then set the value to 500 Hz using the
numeric keypad or the knob and cursor keys.
4 Set the FSK “shift” rate.
Press the FSK Rate softkey and then set the value to 100 Hz using the
numeric keypad or the knob and cursor keys.
At this point, the function generator outputs an FSK waveform (if the
output is enabled).
5 View the waveform.
Press t o view the waveform parameters.
To turn off the Graph Mode, press
again .
