Programming Examples for VEE Users
Programming Basics
To display/connect the Data object
In Figure 6-9, the Data-Real object is used to pass the input parameter value to the
value input variable of the hp4156b_force transaction.
You can display the Data-Real object by clicking the Data menu, selecting Constant,
and then selecting Real. To pass the value, connect the output terminal of the
Data-Real object to the input terminal of the To/From HP4156B object.
NOTE Confirm the data type of the input variable. The data type of the Data object must be
the same as the data type for the input parameter.
To display/connect the Display object
In Figure 6-9, the Display-AlphaNumeric object is used to display the measurement
data (result output variable) from the hp4156b_spotMeas transaction.
You can display the Display-AlphaNumeric object by clicking the Display menu,
and selecting AlphaNumeric. To display the value, connect the output terminal of
the To/From HP4156B object to the input terminal of the Display-AlphaNumeric
object.

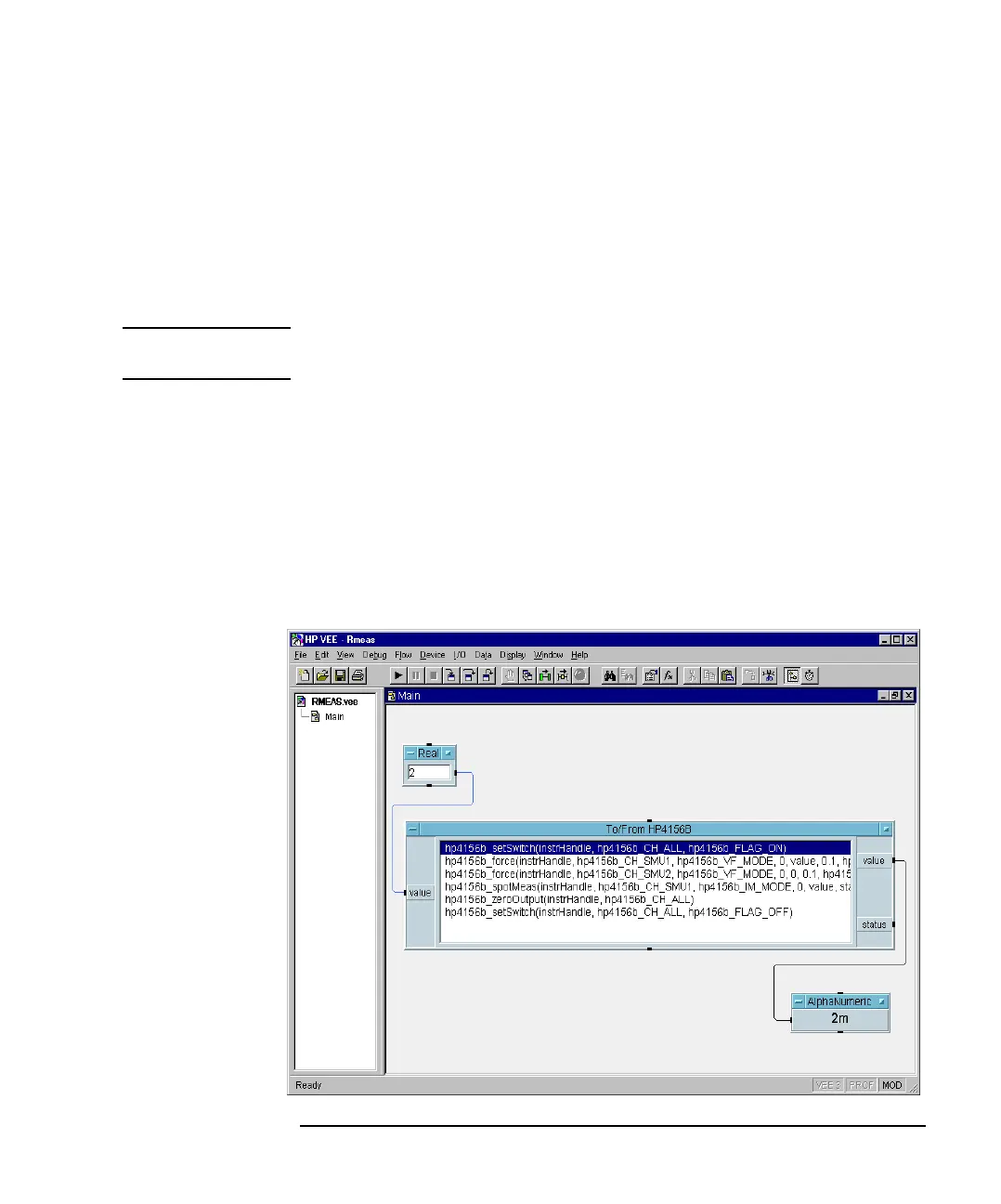

Figure 6-9 To Connect Input/Output Terminals
