Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 7-7
Sample Application Programs Using VEE
Introduction
Measurement Connection and Source Setup
Figure 7-2 shows the measurement connection for instruments, the prober and
devices. This setup is for the fully automatic Online mode. For other modes, ignore
the equipment not used. This figure also shows the default source setup.

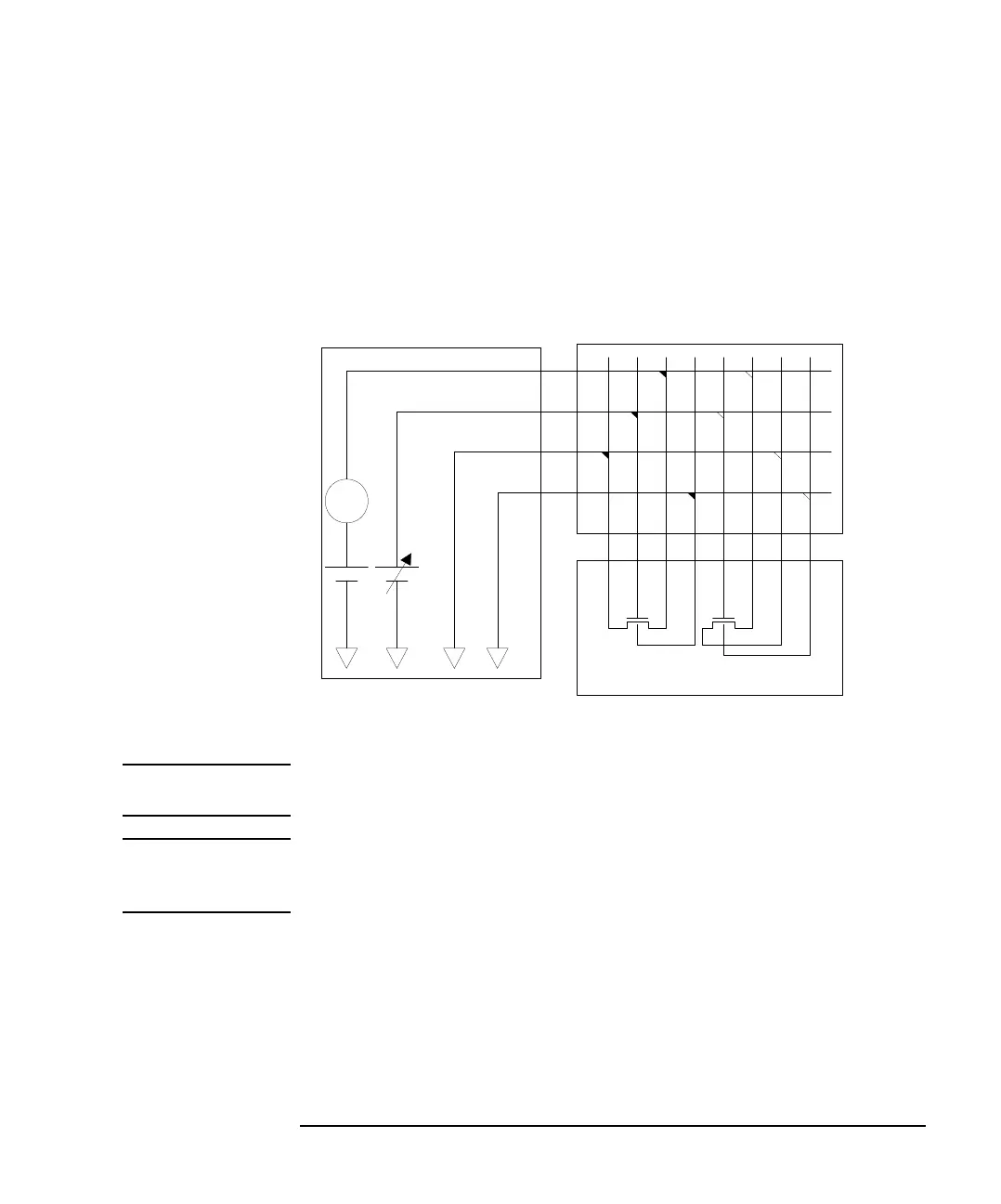

Figure 7-2 Measurement Connection and Source Setup
NOTE To avoid misconnection, pay close attention to the die (device1 and device2) and the
pin assignment of the probe card, if used.
NOTE In Figure 7-2, OUT 1 to 9 indicates output port 1 to 9 of the matrix card installed in
slot 1 of the E5250A; OUT 23 indicates output port 11 of the card installed in slot 2
of the E5250A.
A
1
94
S
SUB
SUB
1
4
3
2
OUT
IN
SMU1
SMU2
SMU3
SMU4
4155/4156
E5250A
Cascade Summit series semi-auto prober
0.5V
0.5V
to
3.0V
Device1 Device2
0V0V
32
7523
DGS
DG
