Agilent Technologies 4UHV User Manual

Technical Information
4UHV Controller Description
5
Agilent 4UHV Ion Pump Controller User Manual / 87-900-137-01 (A) 57/104
4UHV Controller Description
The 4UHV controller is a power supply for ion pumps. It supplies a
high voltage on output, selectable as 3kV, 5kV or 7kV, and measures
the output current.
The controller has the following features:
 Front panel with keypad and a 4-row display (4x20, 146 x 62
mm) for displaying the operating values (voltage, current,
pressure)
 Remote I/O card with DB37 connector
 RS232 and RS485 serial communications.

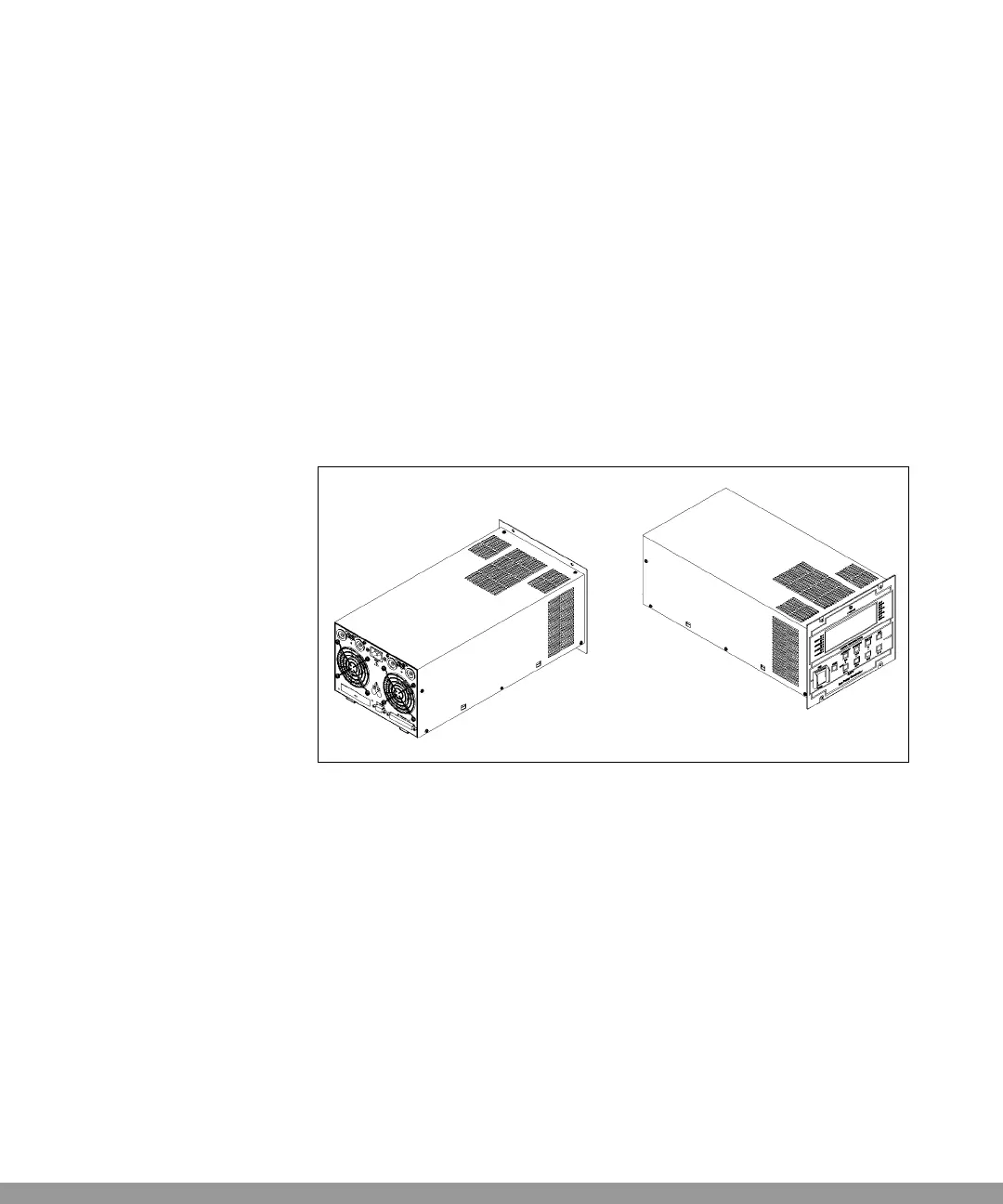

Figure 6 4 UHV Controllers
The controller contains one or two high voltage modules.
Each high voltage module can have one 200 W channel or one 120 W
channel or two 80 W channels.
Some examples of how HV channels can be configured are given
below (for details see the Orderable Parts table):
 Four independent channels with a maximum of 80 W power per
channel
 Two independent channels with a maximum of 200 W power per
channel
