Technical Information

Serial

Agilent 4UHV Ion Pump Controller User Manual / 87-900-137-01 (A) 73/104

Serial

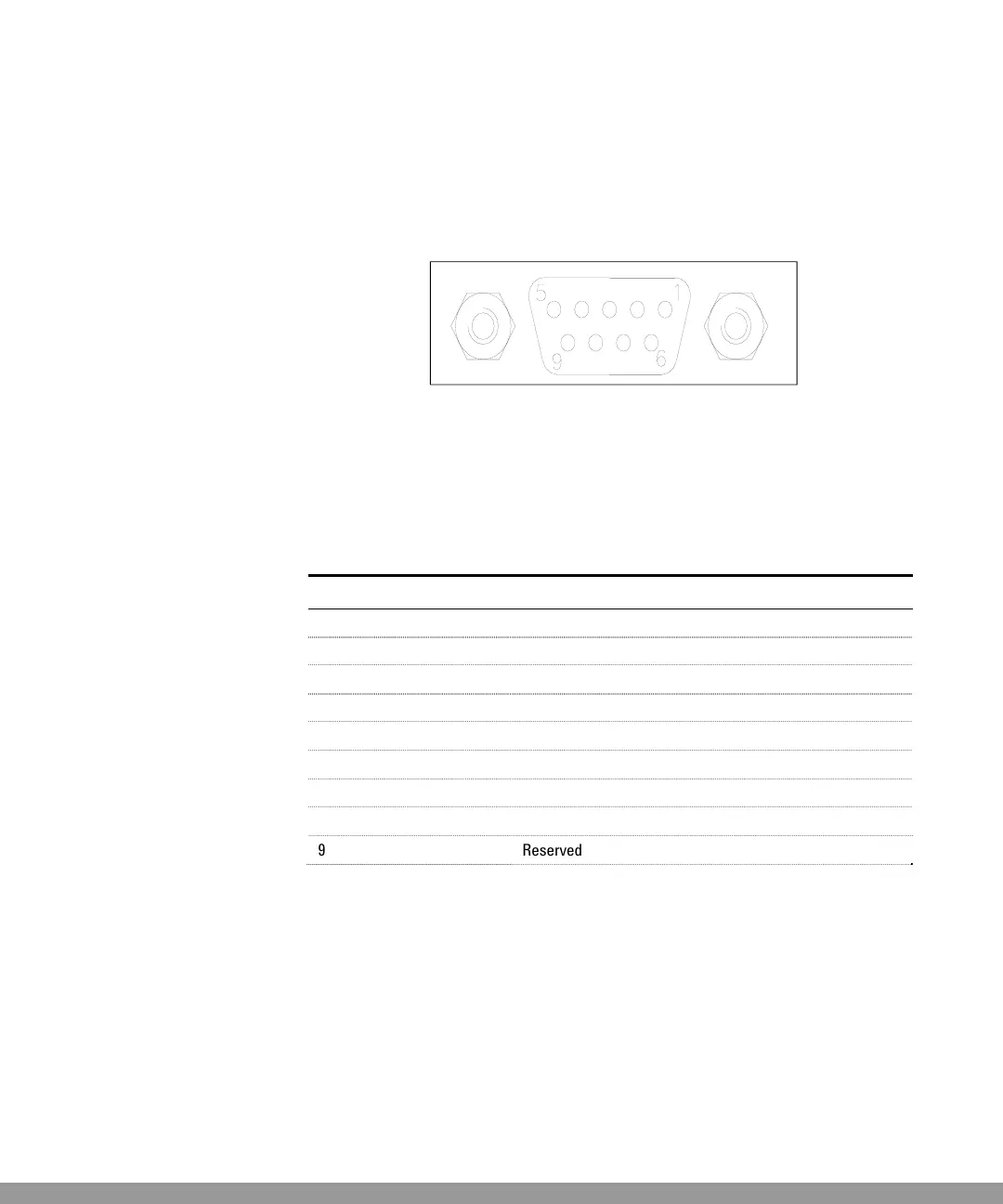

The following figure shows the 4UHV interconnections.

Figure 17 4UHV interconnections

This is a 9-pin D-type serial input/output connector that allows the

4UHV to be controlled via an RS232 or RS485 connection.

Table 5

PIN No. Signal Name

1 +5 V (OUT)

2 TX (RS232)

3 RX (RS232)

4 Reserved

5 GND

6 A + (RS485)

7 Reserved

8 B - (RS485)

9 Reserved
