5
Technical Information
Specifications
60/104 Agilent 4UHV Ion Pump Controller User Manual / 87-900-137-01 (A)
Figure 7
Output voltage vs Output current

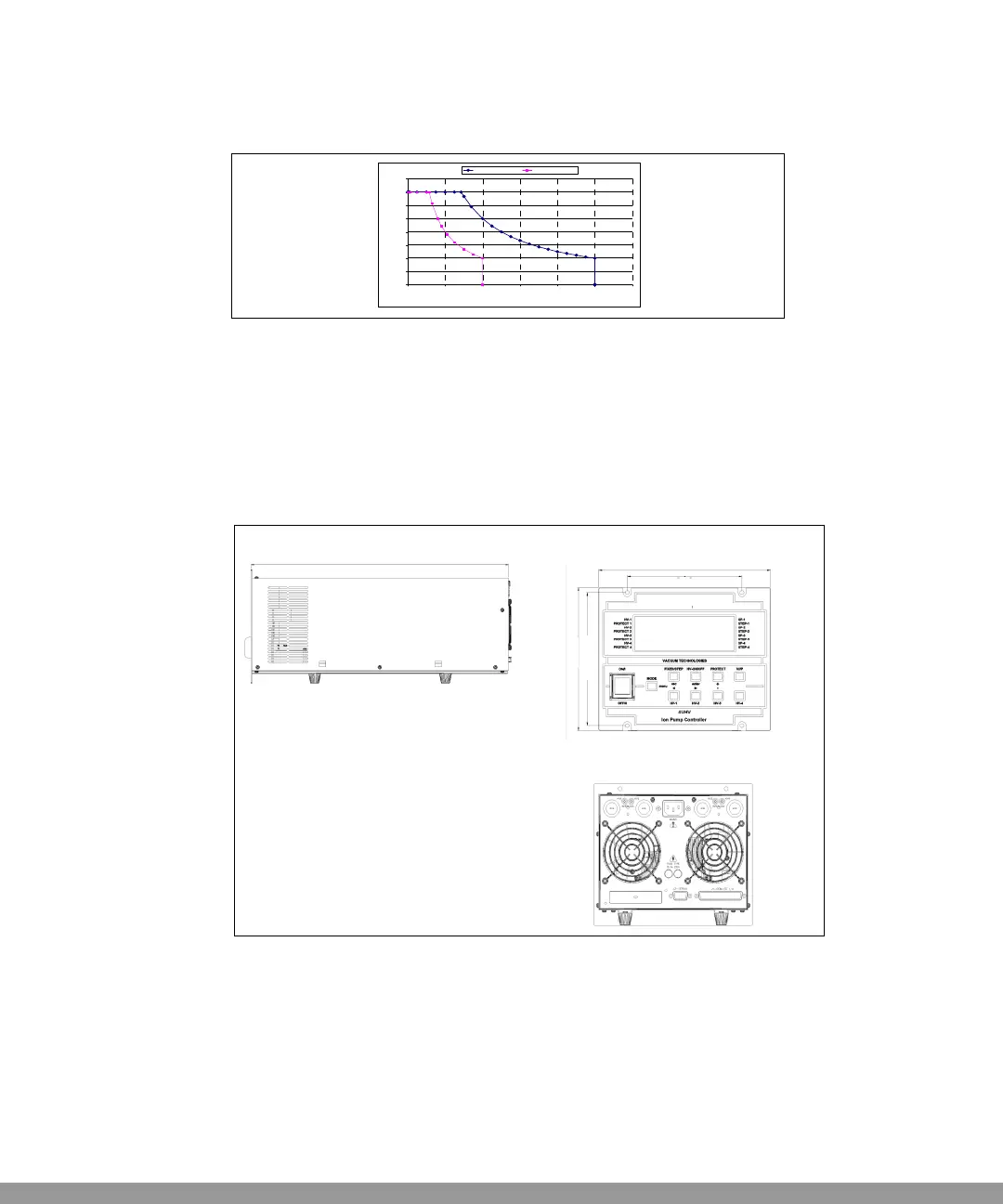

Controller Outline
The outline dimensions for the 4UHV controller are shown in the
following figures:
Front View
Rear View
Figure 8
Controller Model Dimensions
0
1000
2000
3000
4000
5000
6000
7000
8000
0 20406080100120
Current (mA)
Voltage (V)
Output curve (200W) Output curve (80W)
211.40
141.20
177.00
164.30
