Installation
34 Agilent 5100 and 5110 ICP-OES User’s Guide
Torch Assembly and Disassembly
The demountable torch models allow the outer/intermediate tube set
to be separated from the base/injector for easier cleaning.
CAUTION
To prevent damage to the torch, always take care when handling or storing it.
To prevent damage to the instrument, do not use the torch if it is damaged.

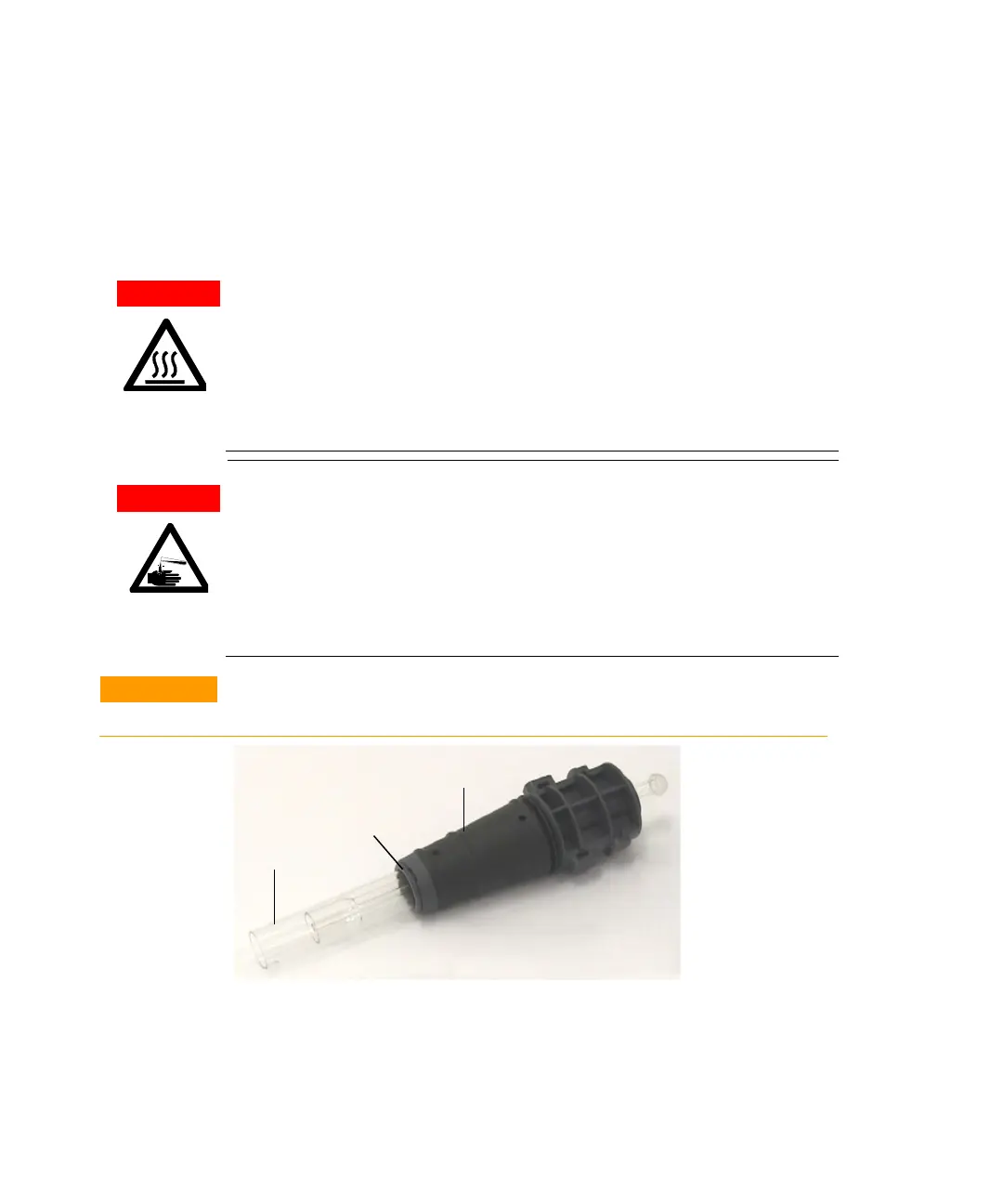

Figure 3. Demountable torch where:
1. Torch, 2. Torch securing ring and 3. Torch body
WARNING
Hot Surface
The torch and torch compartment become warm during instrument operation
and remain so for some time after the plasma has been switched off. Allow
the plasma compartment to cool for at least five minutes before accessing the
plasma compartment. Allow the torch to cool for two minutes before touching
the outer tube or attempting to dismantle the torch.
WARNING
Chemical Hazard
Nitric and hydrochloric acids are very corrosive and can cause severe burns
when they come into contact with the skin. It is essential that appropriate
protective clothing be worn at all times when handling these acids. If acid
contacts the skin, wash off with copious amounts of water and seek medical
attention immediately.
3
2
1
