4-43
MegaZoom Concepts and Oscilloscope Operation
To turn the label display on or off
To turn the label display on or off
1Press the Label key in the Digital section of the front panel.
This turns on display labels for the analog and digital channels. When the Label
key is illuminated, the labels for displayed channels are displayed on the left
side of the displayed traces. When labels are on, the label is also displayed in

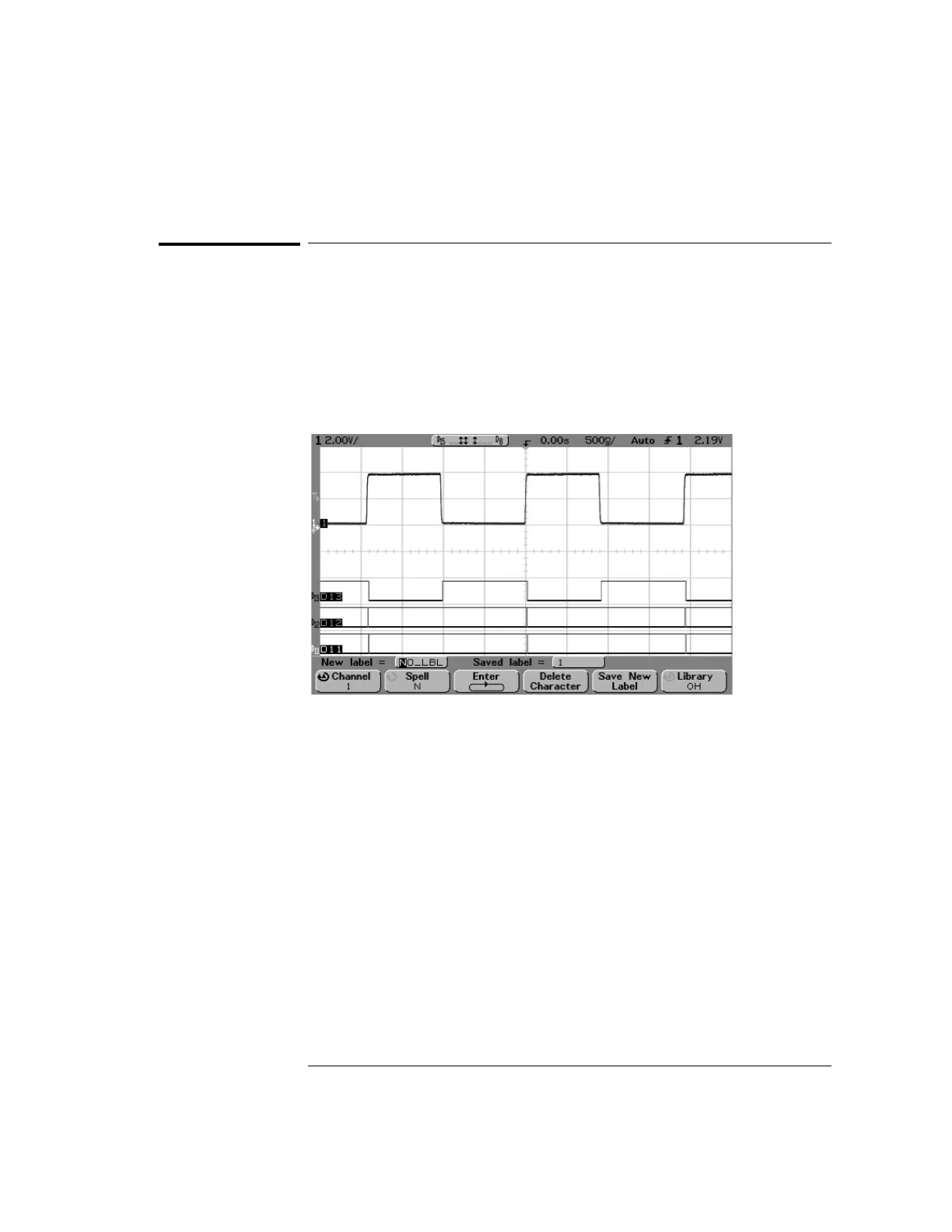

softkeys for the selected channel or source. The figure below shows an example
of the default labels assigned when you turn the label display on. The channel
labels default to their channel number.
2 To turn the labels off, press the Label key until it is not illuminated.
