Agilent Technologies 54621A - To Adjust the Handle

1-12
Getting Started
To adjust the handle
To adjust the handle

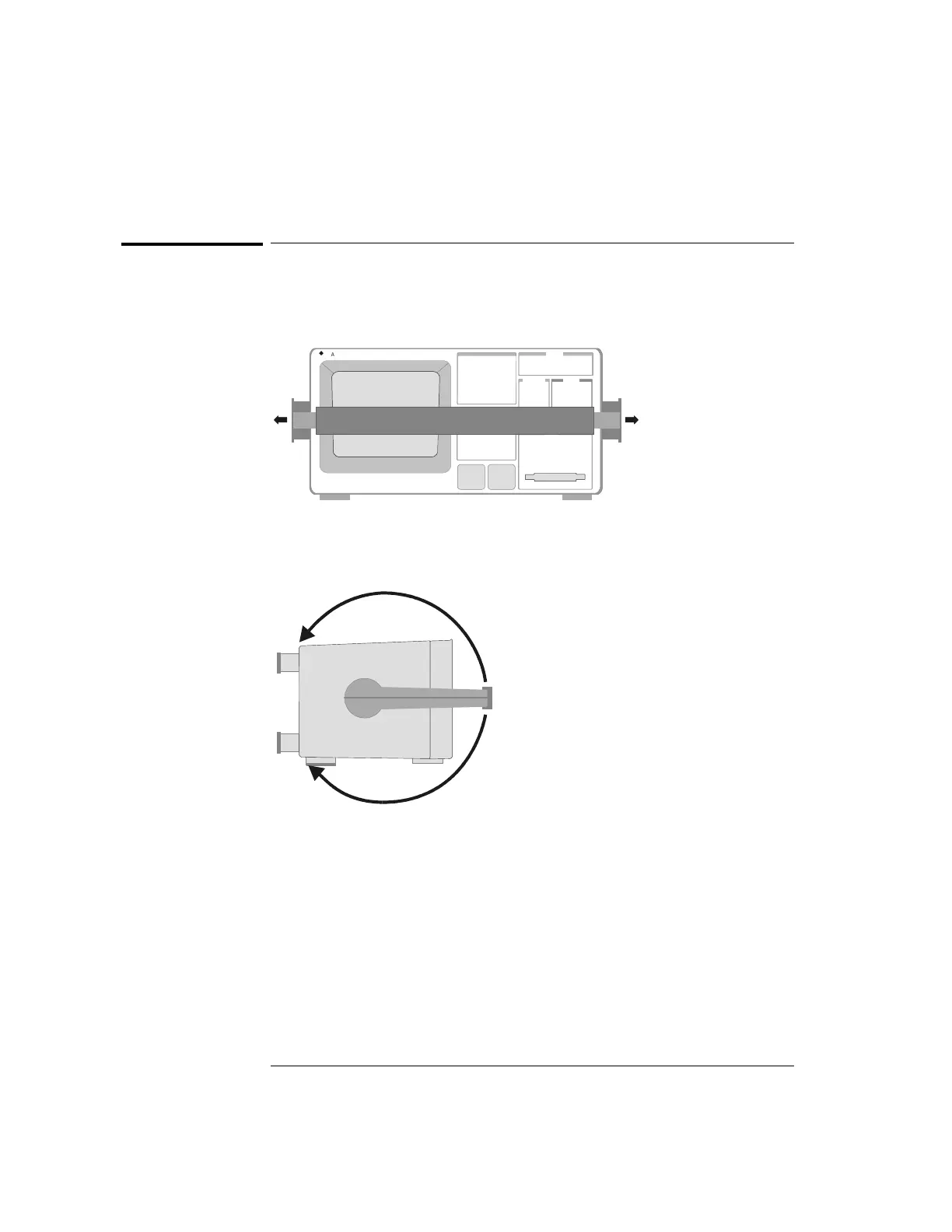

1 Grasp the handle pivot points on each side of the instrument and pull
the pivot out until it stops.
2 Without releasing the pivots, swivel the handle to the desired position.
Then release the pivots. Continue pivoting the handle until it clicks into
a set position.
