3-29
Triggering the Oscilloscope
To use LIN triggering
To use LIN triggering
LIN (Local Interconnect Network) trigger setup consists of connecting the
oscilloscope to a serial LIN signal.

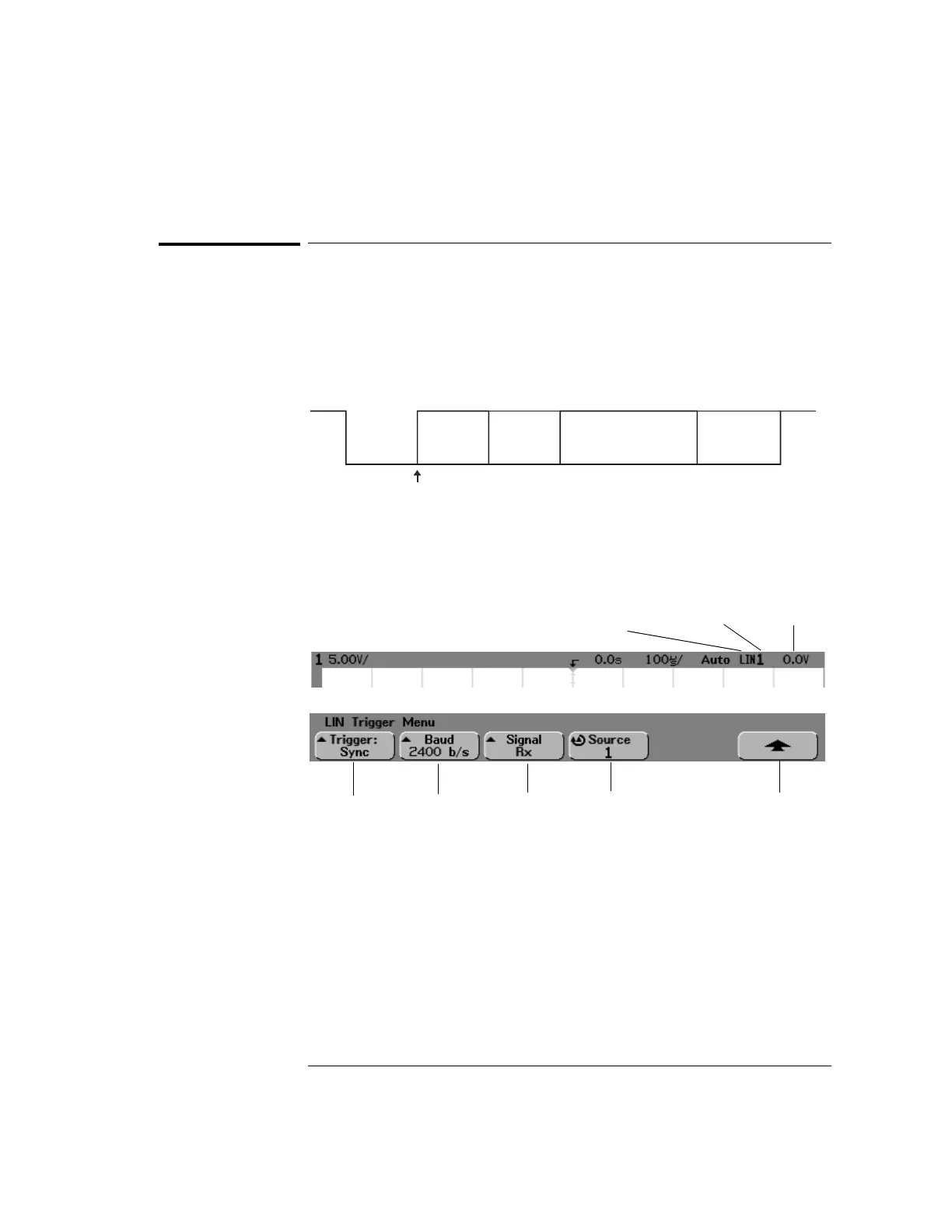

The LIN trigger will trigger on the rising edge at the Sync Break exit of the LIN
single-wire bus signal that marks the beginning of the message frame. A LIN
signal message frame is shown below:
1Press the More key in the Trigger section of the front panel, rotate the
Entry knob until
LIN is displayed in the Trigger softkey, then press the
Settings softkey to display LIN trigger menu.
2Press the
Baud softkey to set the LIN signal baud rate to match your LIN
bus signal.
The LIN baud rate can be set to 2400 b/s, 9600 b/s, or 19.2 kb/s. The default
baud rate is 2400 b/s.
Sync Break Exit
Sync
Break
Sync
Field
Identifier
Break
Data
Fields
Checksum
Field
Signal
baud rate
Trigger on:
condition
Signal type
Signal
source
Trigger level
or threshold
Currently selected
signal source
LIN trigger
Return to
previous menu
