Making Measurements
To use the XY horizontal mode

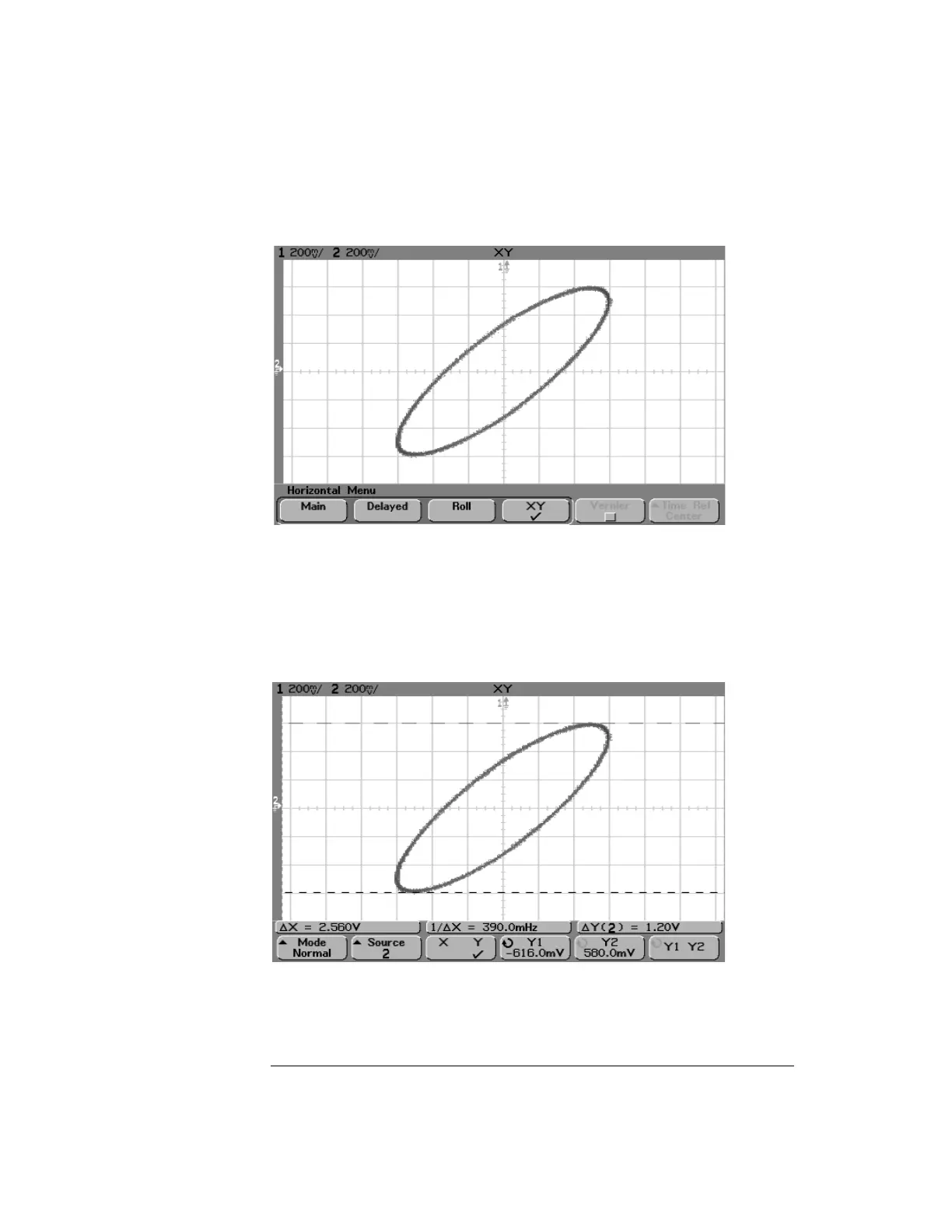

Signal centered on the display
4Press the Cursors key.
5 Set the Y2 cursor to the top of the signal, and set Y1 to the bottom of
the signal.
Note the ∆Y value at the bottom of the display. In this example, we are using
the Y cursors, but you could have used the X cursors instead.
Cursors set on displayed signal
