5-34
Making Measurements
To make cursor measurements
X1 X2 Press this softkey to adjust the X1 and X2 cursors together by turning
the Entry knob. The ∆X value will remain the same since the cursors adjust
together.
You can adjust the X cursors together to check for pulse width variations in a
pulse train.
Y1 Y2 Press this softkey to adjust the Y1 and Y2 cursors together by turning
the Entry knob. The ∆Y value will remain the same since the cursors adjust
together.

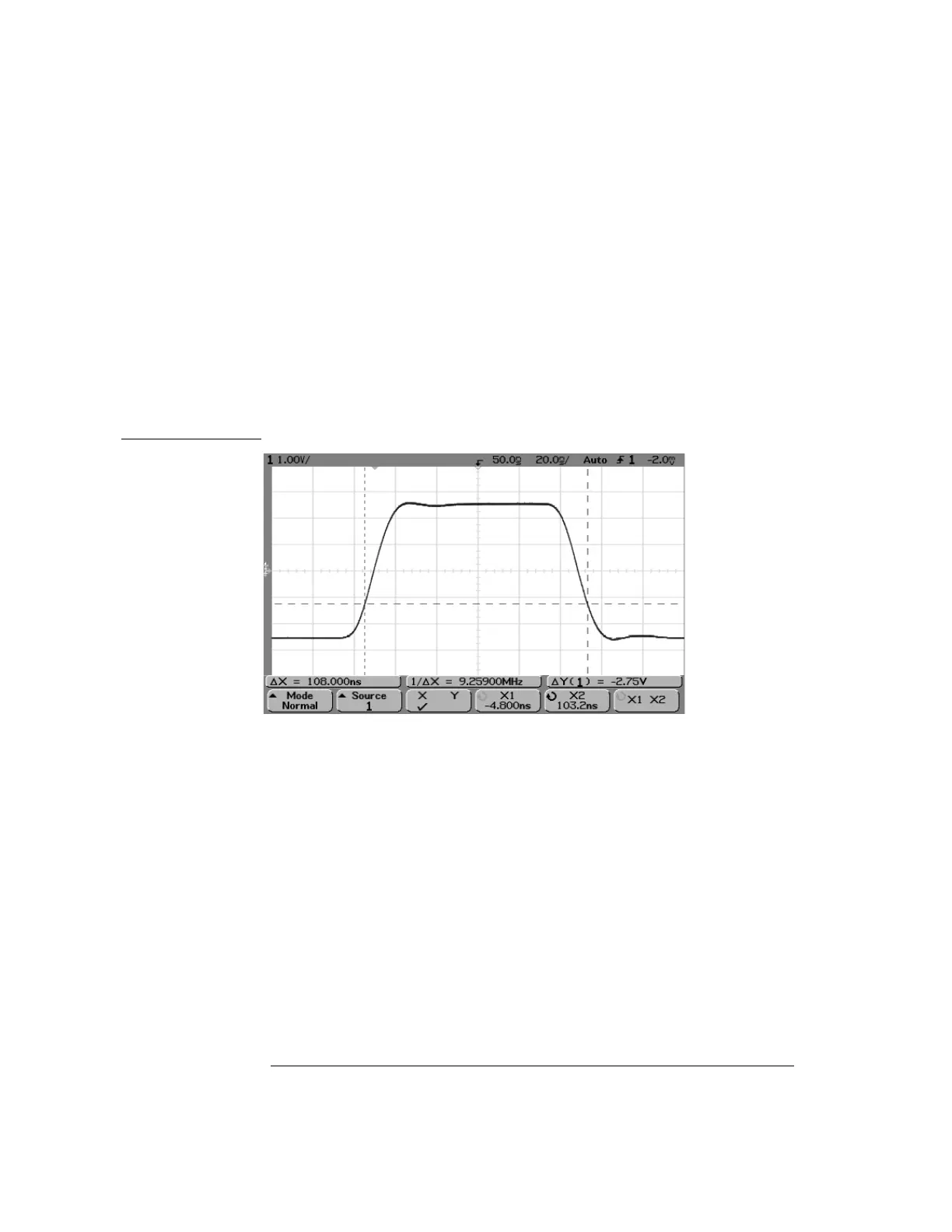

Cursor Examples
Cursors measure pulse widths other than middle threshold points
