Agilent Technologies 54621A User Manual

1-19
Getting Started
To use the digital probes (mixed-signal oscilloscope only)

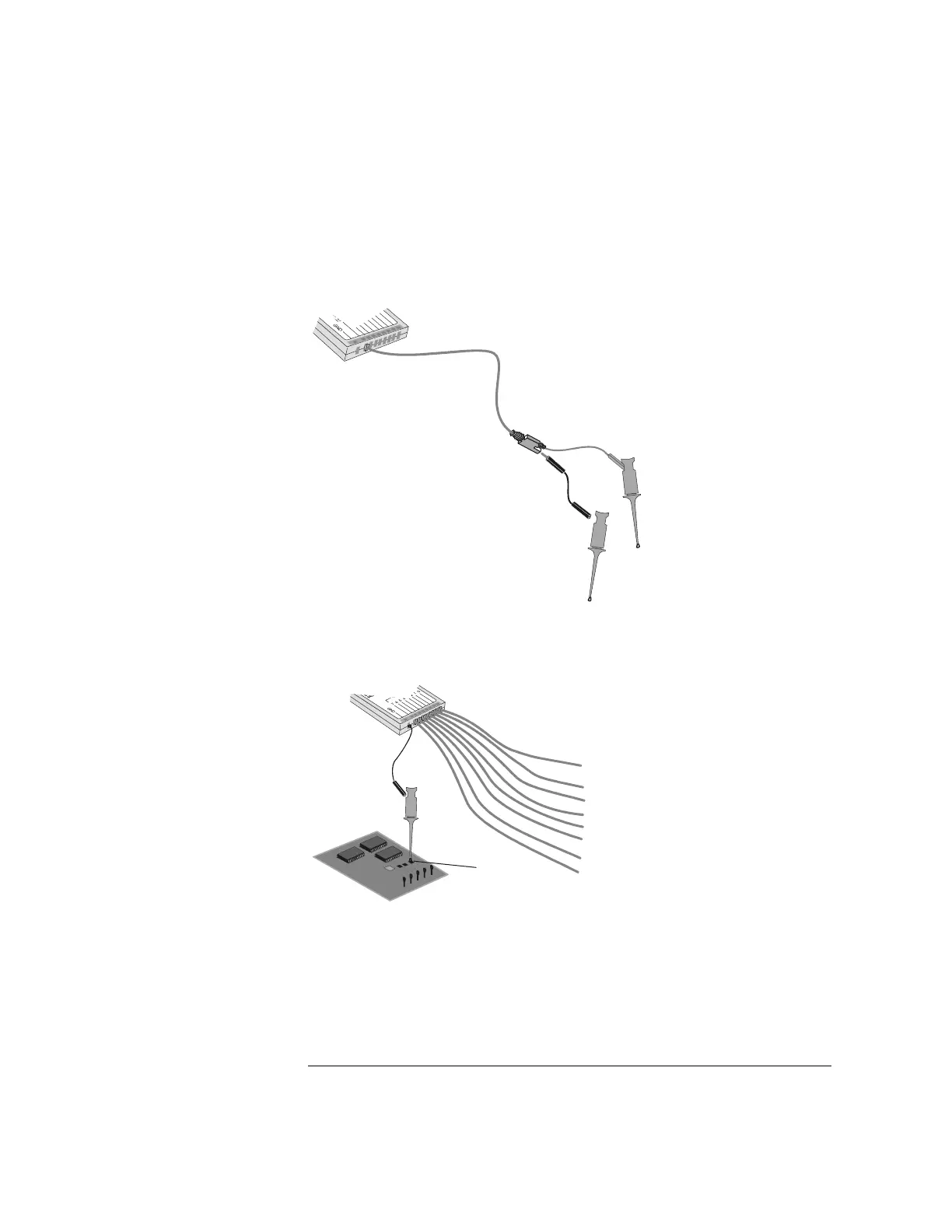

5 For high-speed signals, connect a ground lead to the probe lead, connect
a grabber to the ground lead, and attach the grabber to ground in the
circuit under test.
6 Connect the ground lead on each set of channels, using a probe grabber.
The ground lead improves signal fidelity to the instrument, ensuring
accurate measurements.
Signal Lead
Ground Lead
Grabber
Circuit
Ground
Channel
Pod Ground
