6 General Maintenance

To Remove the E I HES

152 5977C GC/MSD Operating Manual

5 Using the source finger grip, pull the ion source out of the source radiator.

The source contacts have spring loaded pins so some force must be applied

to pull the source out.

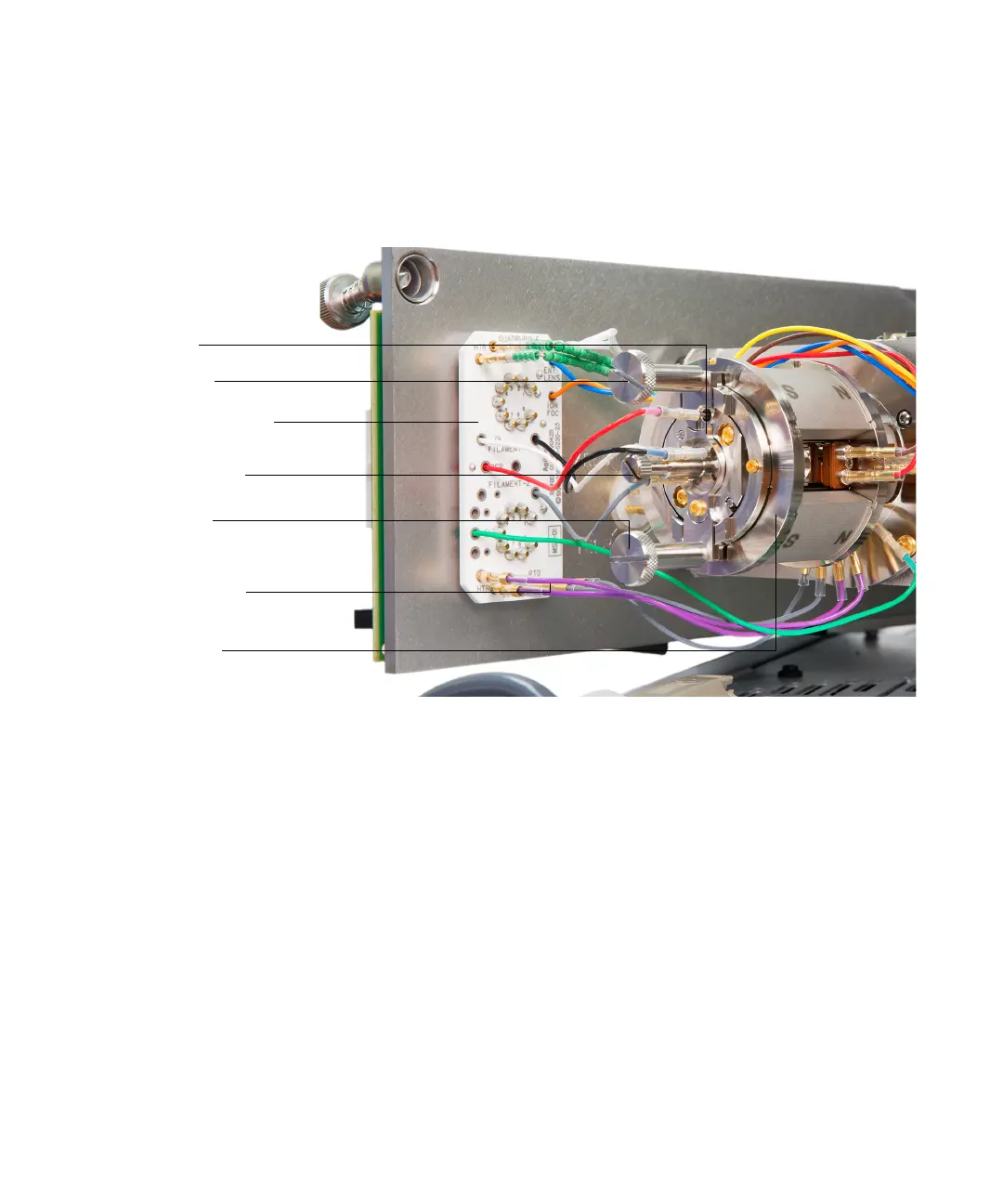

Figure 46 The analyzer chamber for the HES MSD

Ceramic source board

Ion source

Thumbscrew

Source heater and

temperature sensor wires

Source radiator

Source finger grip

Thumbscrew
