Section V
REPLACEABLE PARTS
5-1 INTRODUCTION
This section contains information on ordering replacement
parts. Tables 5-5 through 5-7 list all of the electrical and
mechanical components for the power supply. Each entry in
these tables includes the following information:
a. Reference designator (Refer to Table 5-2).
b. Agilent Technologies part number.
c. Description of Part (Refer to Table 5-3 for
abbreviations).
d. Manufacturer's federal supply code number (refer to
Table 5-4 for manufacturer's name and address).
e. Manufacturer's Part Number.
Table 5-5 lists the circuit board assemblies, cables, and
electrical components within the chassis of the power
supply.
Table 5-6 lists all of the electrical and mechanical
models 6621A-6624A and 6627A.
Table 5-7 lists all of the electrical and mechanical parts on
the 40 Watt Low Voltage (40WLV), 40 Watt High Voltage
(40WHV), 80 Watt Low Voltage (80WLV), and 80 Watt High
Voltage (80WHV) output board types. The abbreviations
(40WLV, 40WHV, etc.) are used in table 5-7 to show the
differences between the four output board types. The output

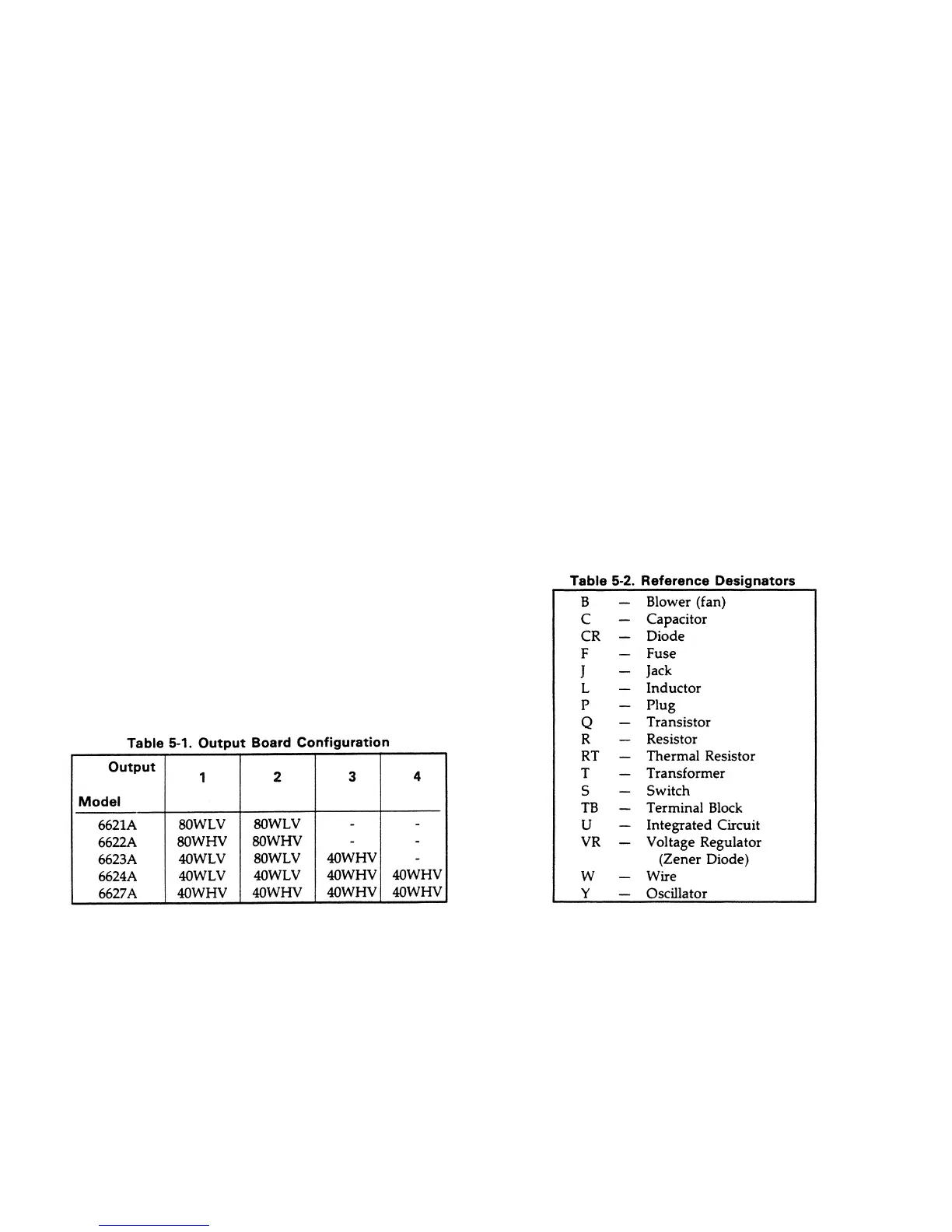

board configuration for each model is given in Table 5-1
below.
5-2 HOW TO ORDER PART
You can order parts from your local Agilent Technologies
sales office. Refer to the list of sales offices at the back of the
manual for the office nearest you. When ordering parts
include the following information:
a. The Agilent Technologies part number.
b. A description of the part.
c. The quantity desired.
d. The model number (Agilent 6621A, 6622A, 6623A,
6624A, or 6627A) in which the part is used.
If you wish to order a part directly from the manufacturer,
locate the manufacturer's Federal Supply Code and
corresponding address in Table 5-4.
