Getting Started
Making a Measurement
Making a Measurement
This procedure will introduce you to the Agilent 86140B series optical spec-
trum analyzer front panel controls. By following this procedure you will do the
following:
• Perform an auto alignment
• Perform a peak search
• Use a delta marker
• Print the display
Refer to “The Menu Bar” on page 1-17 and “The Softkey Panels” on page 1-18.
Instrument setup
A source signal must be present at the input of the optical spectrum analyzer.

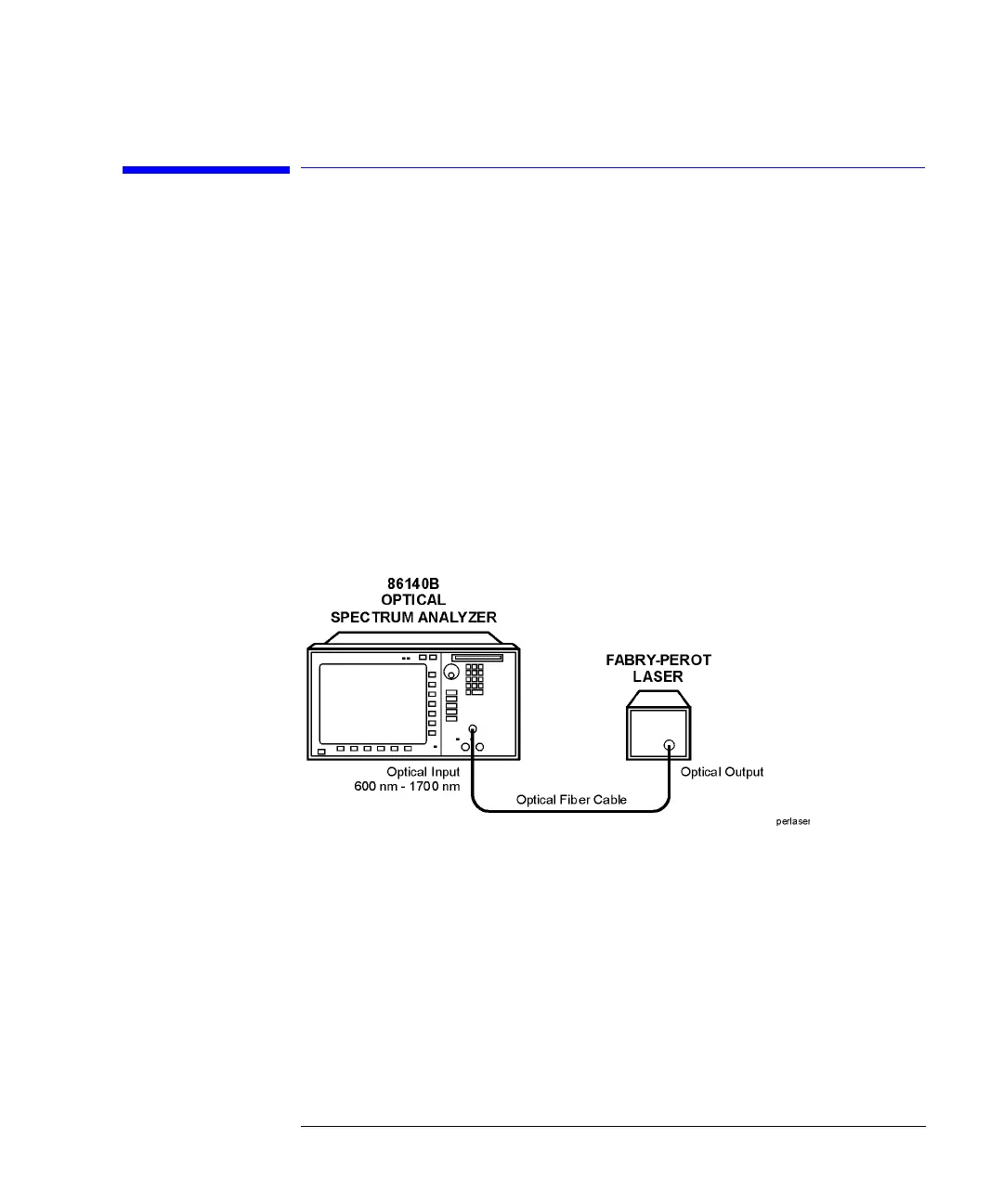

In this procedure a Fabry-Perot laser is used as the source. You can use
another source or the optional 1310/1550 nm
EELED. If another source is being
used, the display will differ from those shown.
To set the OSA to a known state
• Press the front-panel Preset key to set the instrument to a known state. For
a complete description of preset conditions, see page 3-65.
