Using the Instrument
Saving, Recalling, and Managing Files
Save Traces
Selects the traces to be saved.
Save Graphics
Allows you to save graphic data in one of two formats. These selections are
valid only when saving to the floppy drive.
CGM (Computer Graphics Metafile format) is a vector graphics format that
describes pictures and graphical elements in geometric terms. The file is
saved with .cgm extension.
GIF (Graphics Interchange Format) is a cross-platform graphic standard.
GIF formats are commonly used on many different platforms and readable
by many different kinds of software. The file is saved with .gif extension. GIF
supports up to 8-bit color (256 colors).
Save to
Allows you to choose between saving data to a floppy disk or to internal mem-
ory.
File Name
Selects manual or automatic mode for choosing a file name.
4 If you have chosen Auto to select the file name, press the Auto Save softkey.
The analyzer will generate a filename and save the file.
5 If you have chosen Manual to select the file name, press the Choose File to
Save softkey. The Filename Menu setup panel opens.

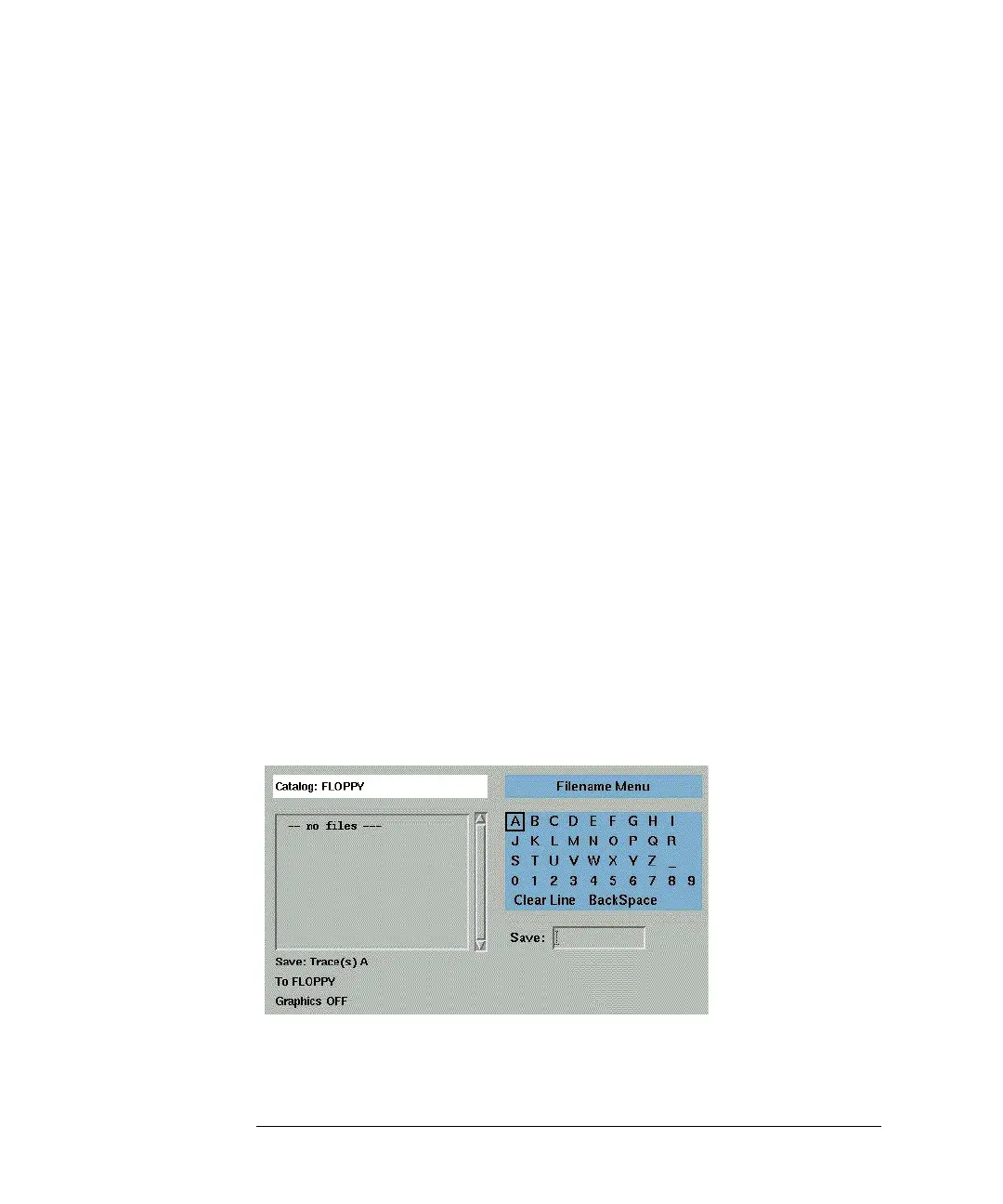

The Filename Menu setup panel
