6 G7200-90210 (Rev. A) MassHunter Workstation Quick Start Guide
Check tuning

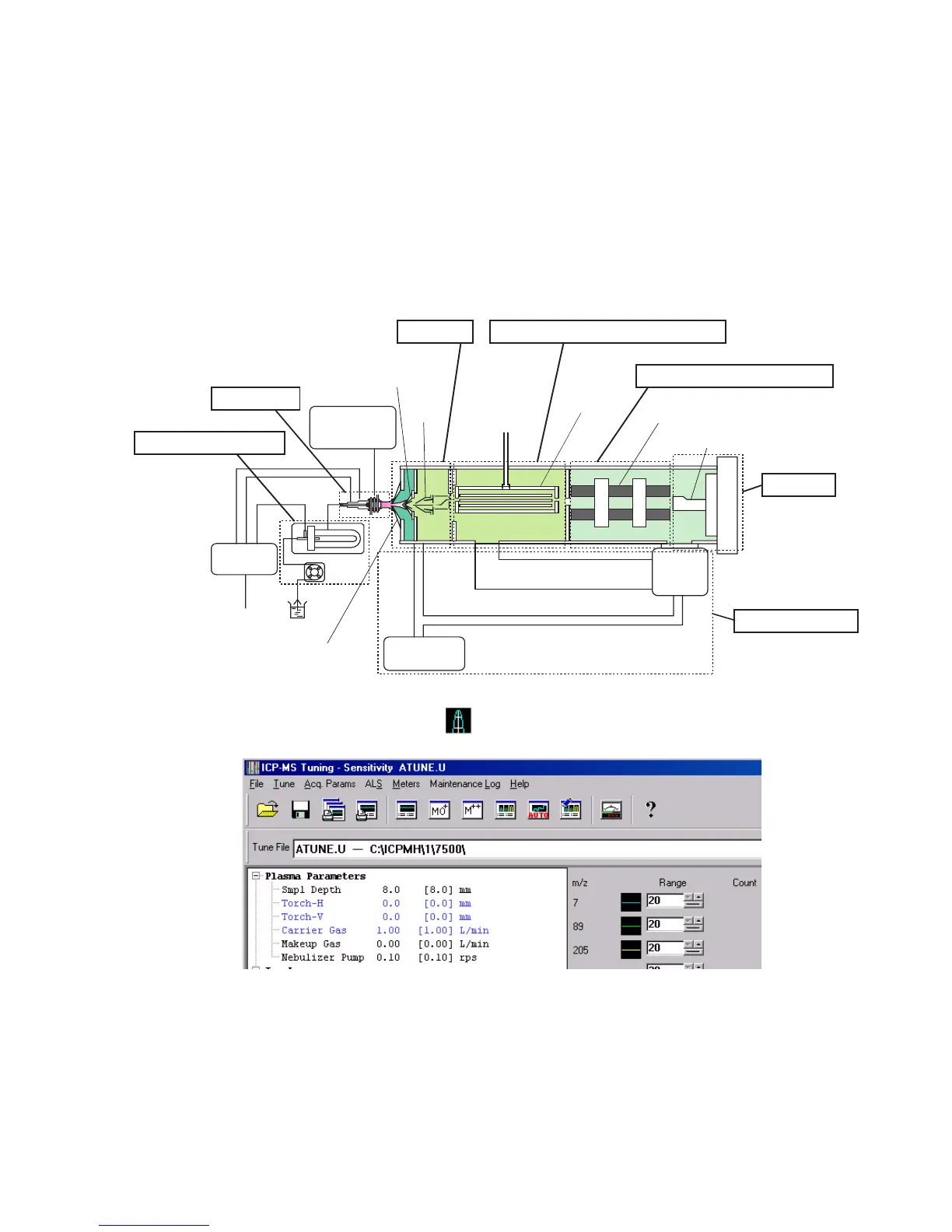

The following diagram labels the parts of the ICP- MS instrument. You can
refer to this diagram during the discussion of tuning parameters in this
section.
Open the Tuning panel by selecting Tune from the Instrument menu,
or by clicking the Tune icon on the ICP- Top toolbar.
Ion Source
Sample Introduction
Octopole
Reaction Cell
Electron Multiplier
Interface
Octopole Reaction System (ORS)
Quadrupole Mass Analyzer
Detector
Vacuum System
Skimmer Cone
Ion
Lens
Reaction Gas
RF Generator
Hyperbolic Quadrupole Rod Assembly
Turbo-
Molecular
Pump
Foreline
Pump
Sampling Cone
Sample
Ar Gas
AMFC
To Next Page
