Maintenance
24 Cary 50 Spectrophotometer Hardware Manual

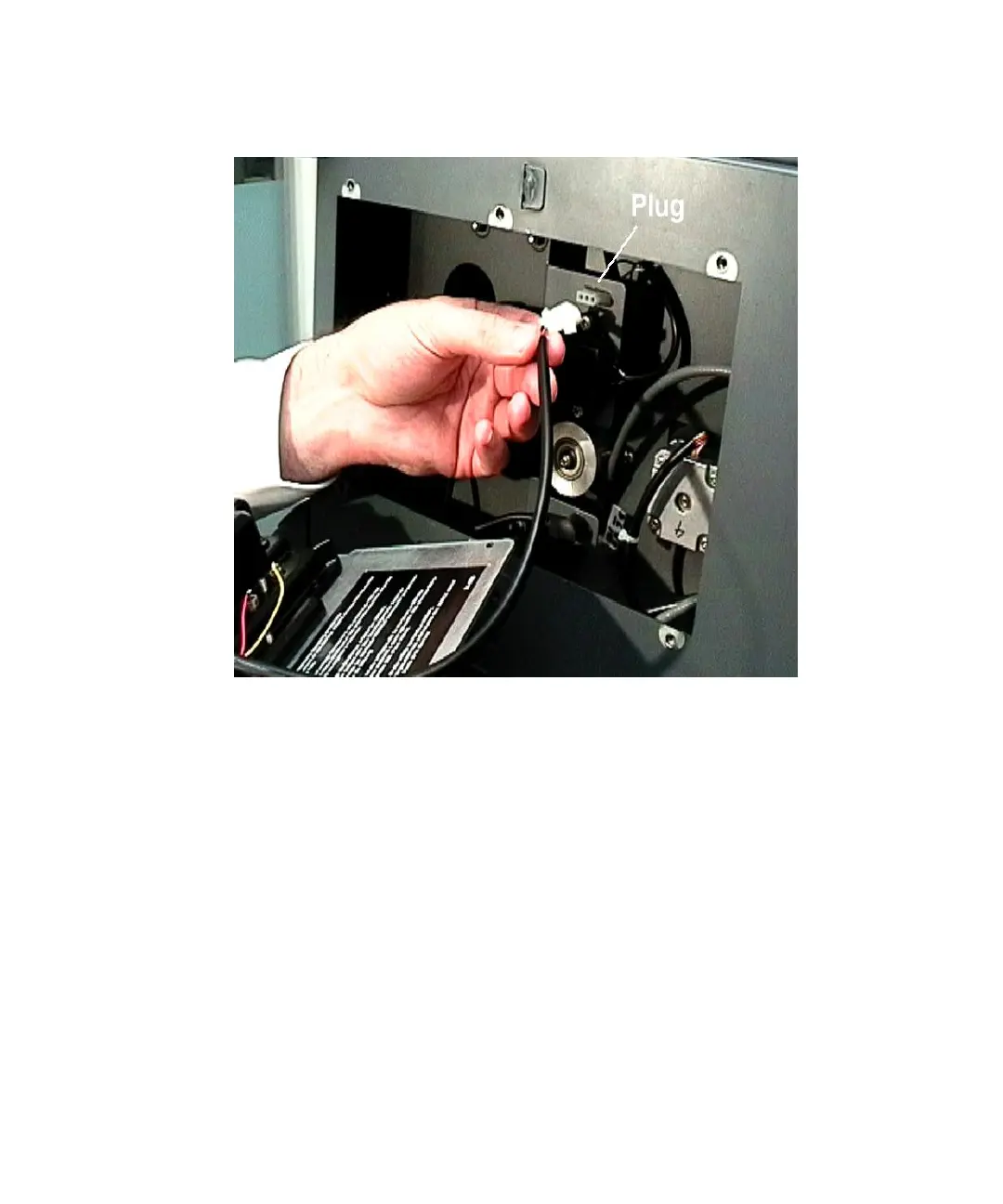

Figure 4. Unplugging the 3-pin connector
To fit a new lamp module:
1 Plug the 3-pin connector of the new lamp module into the
instrument.
2 Fit the lamp module in the base of the Cary 50, ensuring that the
wiring is kept clear of the other parts of the instrument.
3 Replace and tighten the six screws.
4 Return the instrument to its upright position and replace the
cable at the rear.
5 Reconnect the computer to the Cary 50.
