Technical Description
Scheduled Maintenance Cards
5
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 107/140
WARNING!
If you have to perform maintenance on the pump after a considerable time in
operation, leave it to cool as temperature of the outer surface may be in
excess of 60 °C.

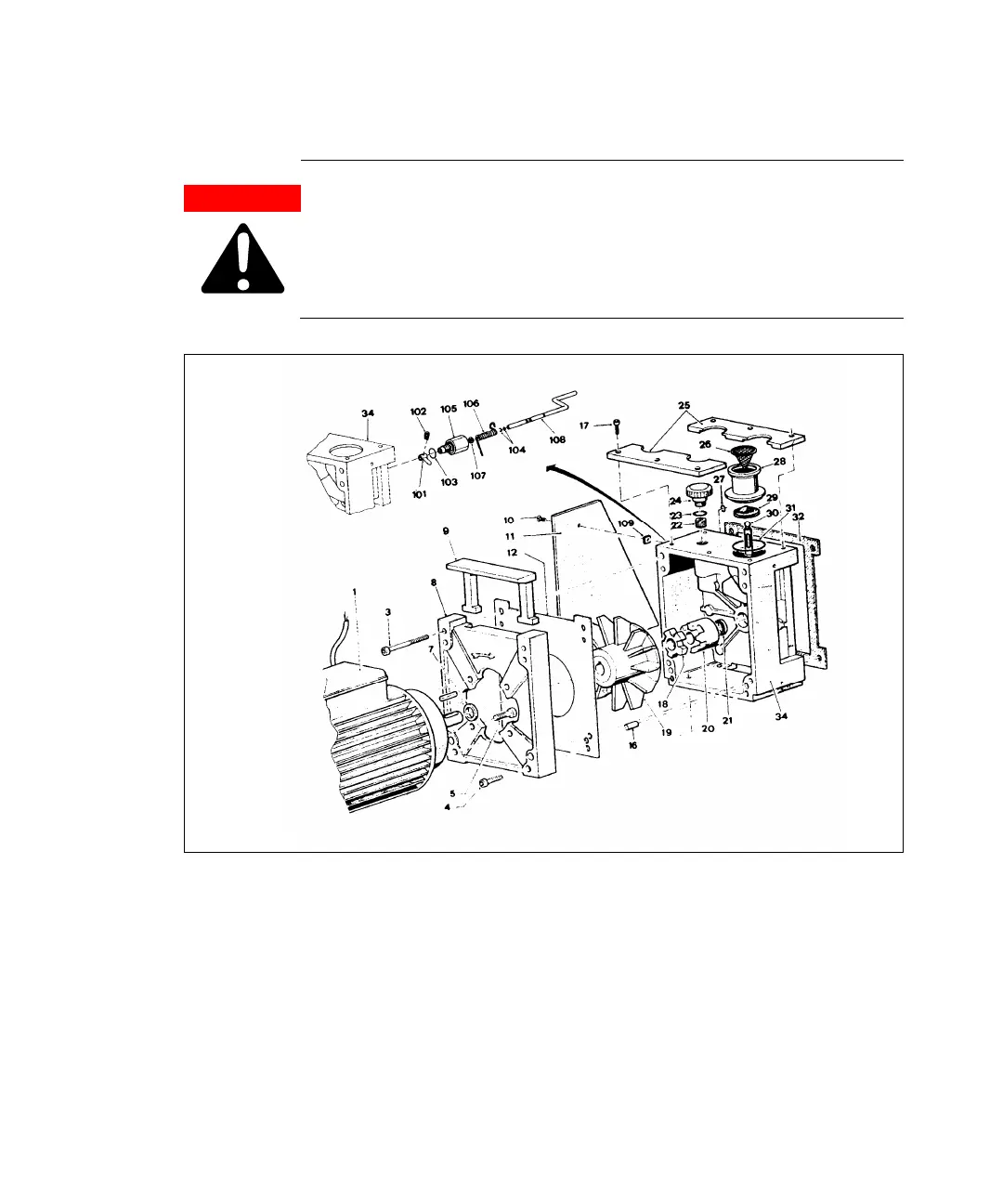

Figure 23
1. Disconnect the motor bearing plate (8) from the support (34) by
removing the four screws (4).
16. Remove the half-joint/fan (19) from the support, together with
the motor (1), the plate (8) and the plate (12) (for the DS402 1Ph,
DS402 3Ph, DS602 1Ph and DS602 3Ph only).
