Agilent Technologies E4445A Service Guide

312 Chapter 11
Assembly Replacement Procedures
Top Brace
Top Brace
Removal
1. If you haven’t already done so, remove the instrument outer case.
Refer to the “Instrument Outer Case” removal procedure.
2. Using the T-10 driver, remove the top screws (3) (one screw is under
the security label) and the side screws (2) attaching the top brace
(1) to the deck. Refer to Figure 11-4.
3. The top brace can now be removed from the deck.

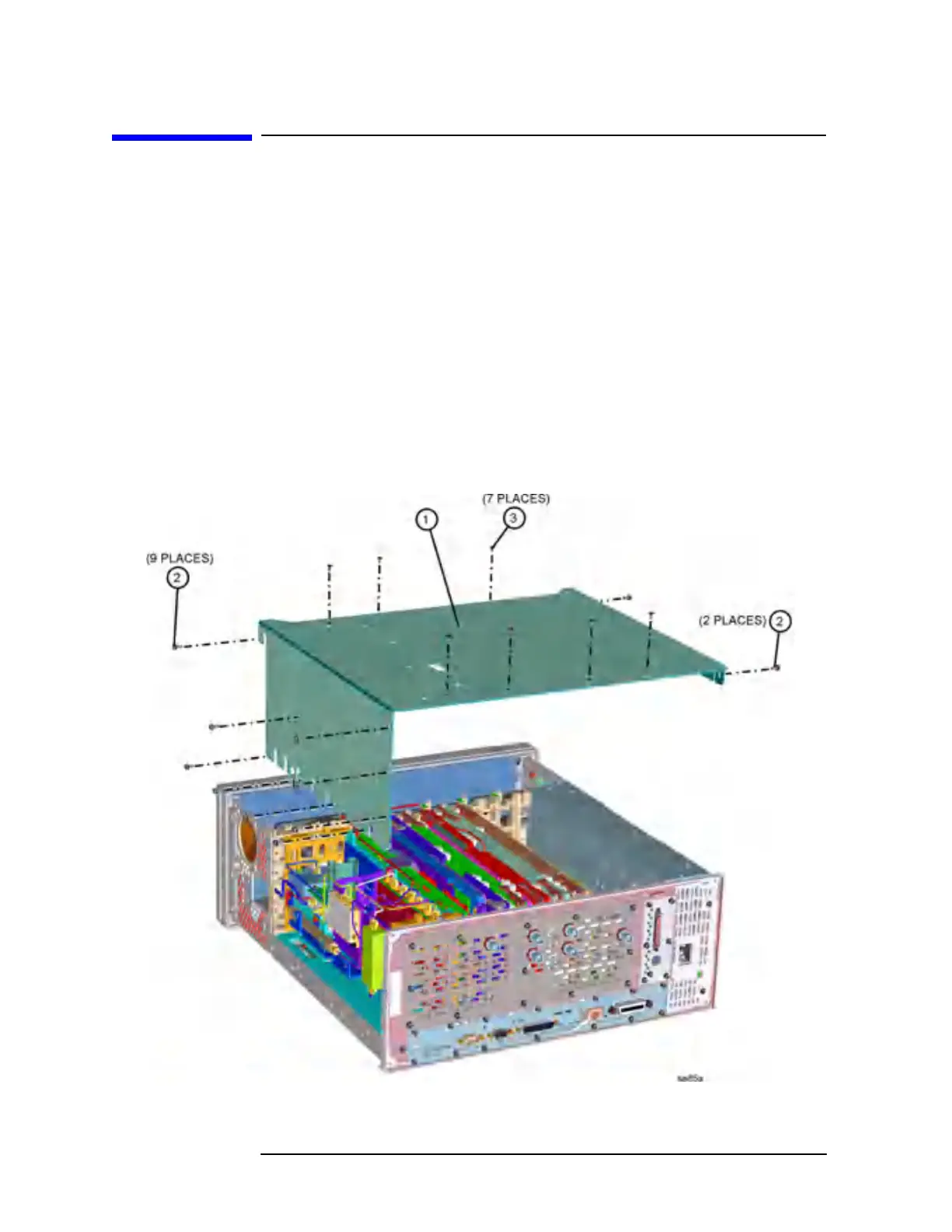

Figure 11-4 Top Brace
