Agilent Technologies E4445A Service Guide

Chapter 11 397
Assembly Replacement Procedures
Front Frame Subassemblies

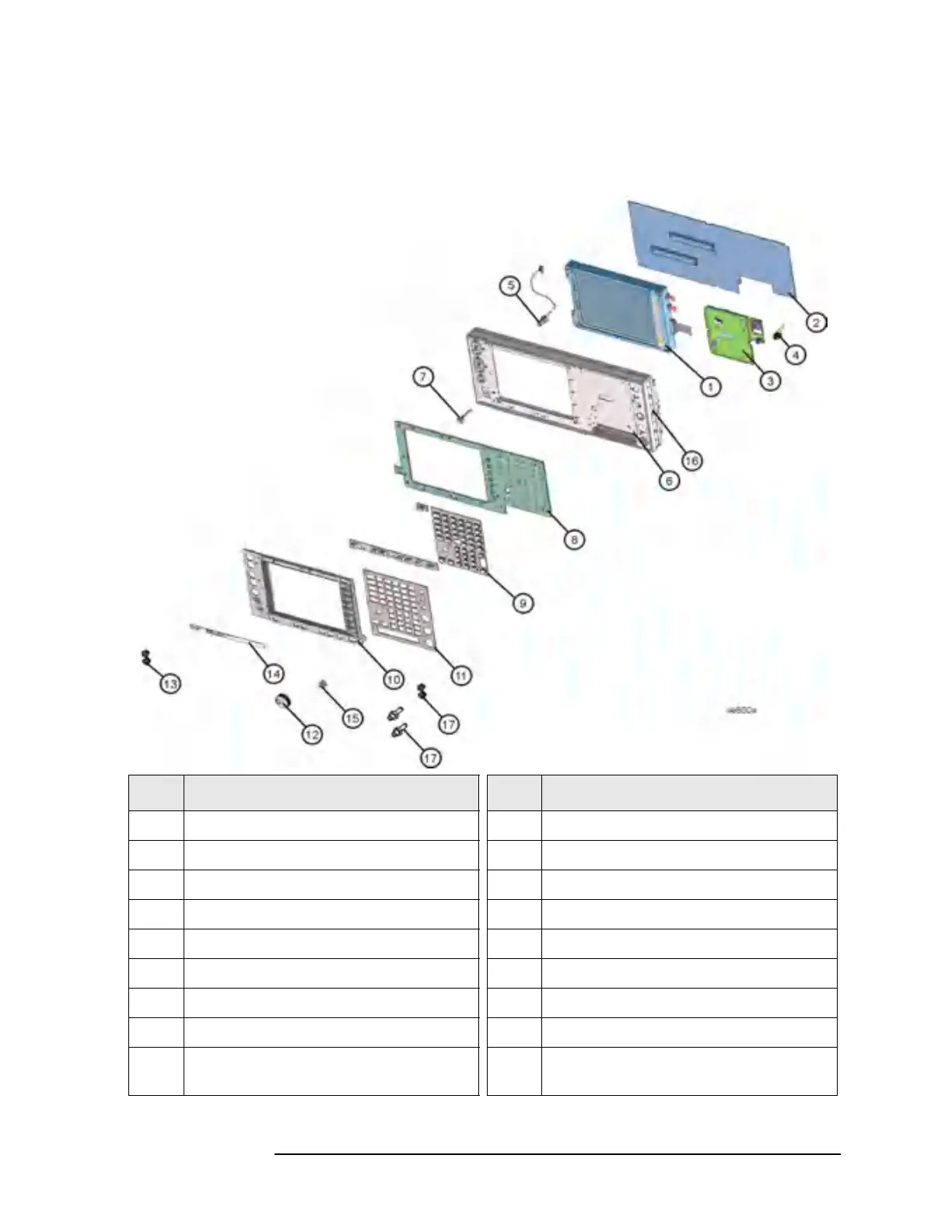

Front Frame Exploded View
Figure 11-57 Front Frame Exploded View
Item Description Item Description
1 Display Assembly 9 Keypad
2 Front Shield 10 Display Bezel Assembly
3 A2 Front Panel Interface Assembly 11 Dress Panel Assembly
4 A28 Audio Out Board 12 RPG Knob
5 W1 Ext Trigger Input Cable 13 Hole Plug, Nylon
6 Front Frame Assembly 14 Name Plate overlay label
7 Line Key (push rod) 15 Volume Knob
8 A3 Keyboard 16 Side Trim
17 Hole plugs or
SMA adapters (Option AYZ)
