400 Chapter 11
Assembly Replacement Procedures
Front Frame Subassemblies

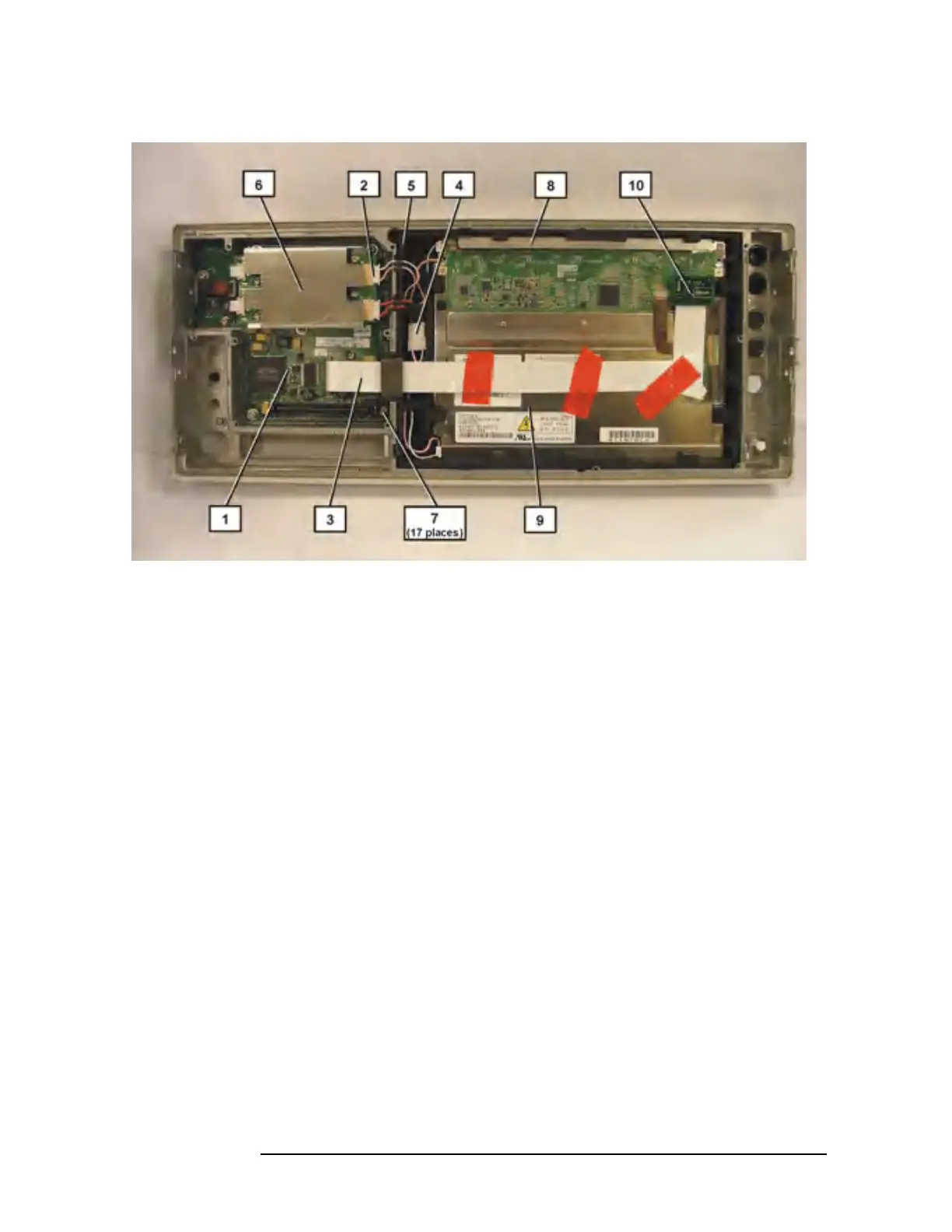

Figure 11-59 Front Frame Subassemblies
Display Replacement
1. Carefully place the display into the rubber display mount. Flex the
display mount rubber tabs until they are in place over the edges of
the display.
2. Refer to Figure 11-59. Install the pressure plate (8) between the
display mount and the top of the display.
3. Place the display mount / display into the front frame.
4. Route the bottom display backlight cable from the display under the
rubber tab of the display mount.
5. Plug the bottom backlight cable from the display into the backlight
extension cable (4). Press the backlight extension cable into the
grooves of the display mount.
6. Plug the top backlight cable from the display into the top inverter
board. Press the backlight extension cable into the grooves of the
display mount.
7. Plug the Display Converter board/flat flex cable into the flat panel
display connector.
8. Place the ferrite block (on the flat flex cable) into the rubber display
mount.
9. Press the tape down on the flat flex cable to secure the cable to the
display.
