Service Guide E8364-90038 5-19
PNA Series Microwave Network Analyzers Theory of Operation
E8362C, E8363C, E8364C Signal Separation Group Operation
Normal Option 014 Configuration
The normal configuration for the Option 014 is shown in Figure 5-4 on page 5-19. With this configuration and
inclusion of an external amplifier and accessories, you can calibrate the analyzer and test devices at power
levels up to +30 dBm. You can make measurements in the forward, reverse or both directions and still
achieve these high power levels. For more information on higher power measurements, search for “Option
014” in the embedded help index in the analyzer.

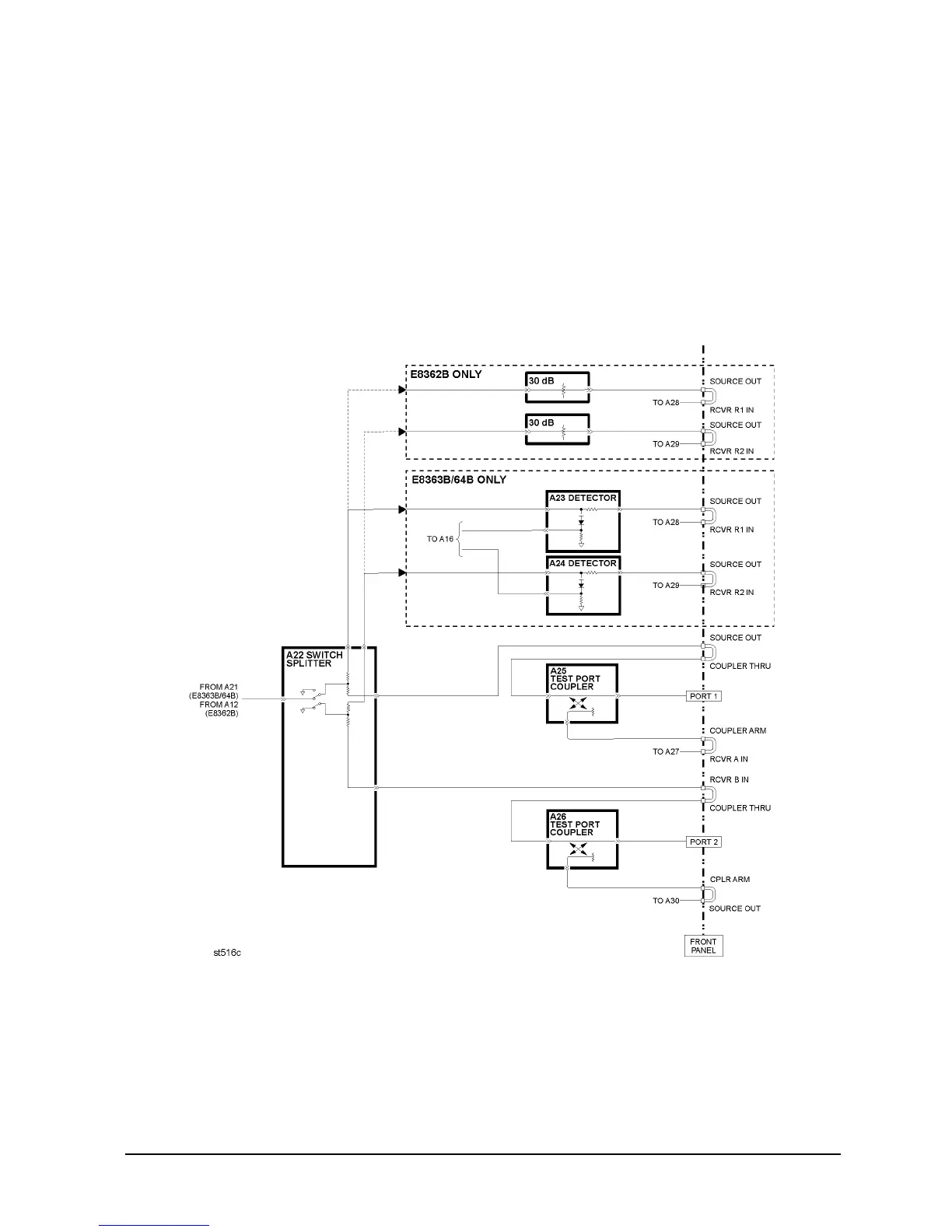

Figure 5-4 Signal Separation Group, Option 014 Analyzer
High Dynamic Range Configuration
With a few jumper changes, you can configure the Option 014 for higher dynamic range measurements. By
