Agilent Technologies E8364C Service Guide

Service Guide E8364-90038 7-77
PNA Series Microwave Network Analyzers Repair and Replacement Procedures
E8362C, E8363C, E8364C Removing and Replacing the Midweb and the B1 Fan
Removing the Midweb
Refer to Figure 7-34.
1. Disconnect the power cable (item
①) for the three fans from the A14 system motherboard.
2. With a T-10 TORX driver, remove the seven midweb mounting screws (item
➁). Lift out the midweb.

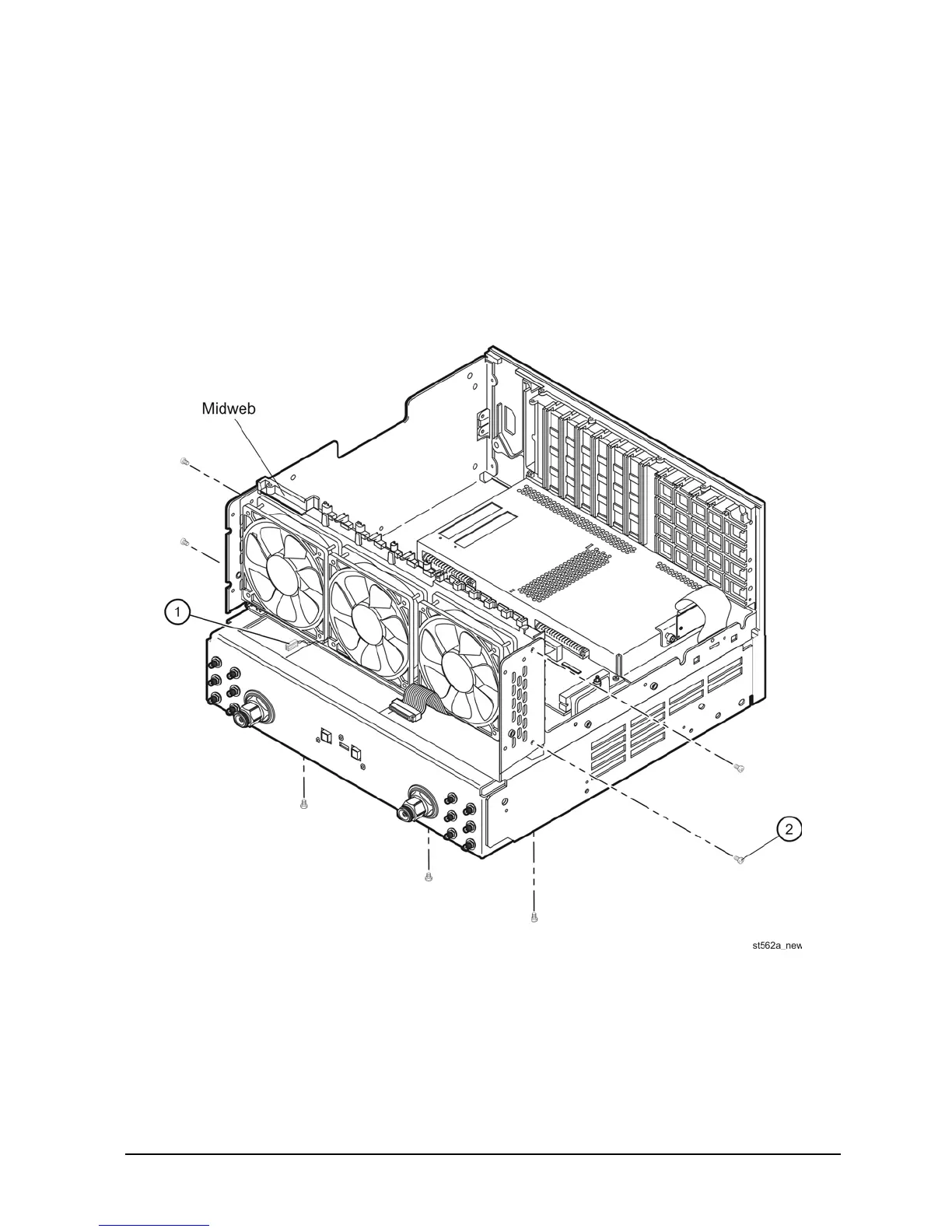

Figure 7-34 Midweb Removal
