Maintenance
60 Agilent Graphite Tube Atomizer GTA 120 User’s Guide

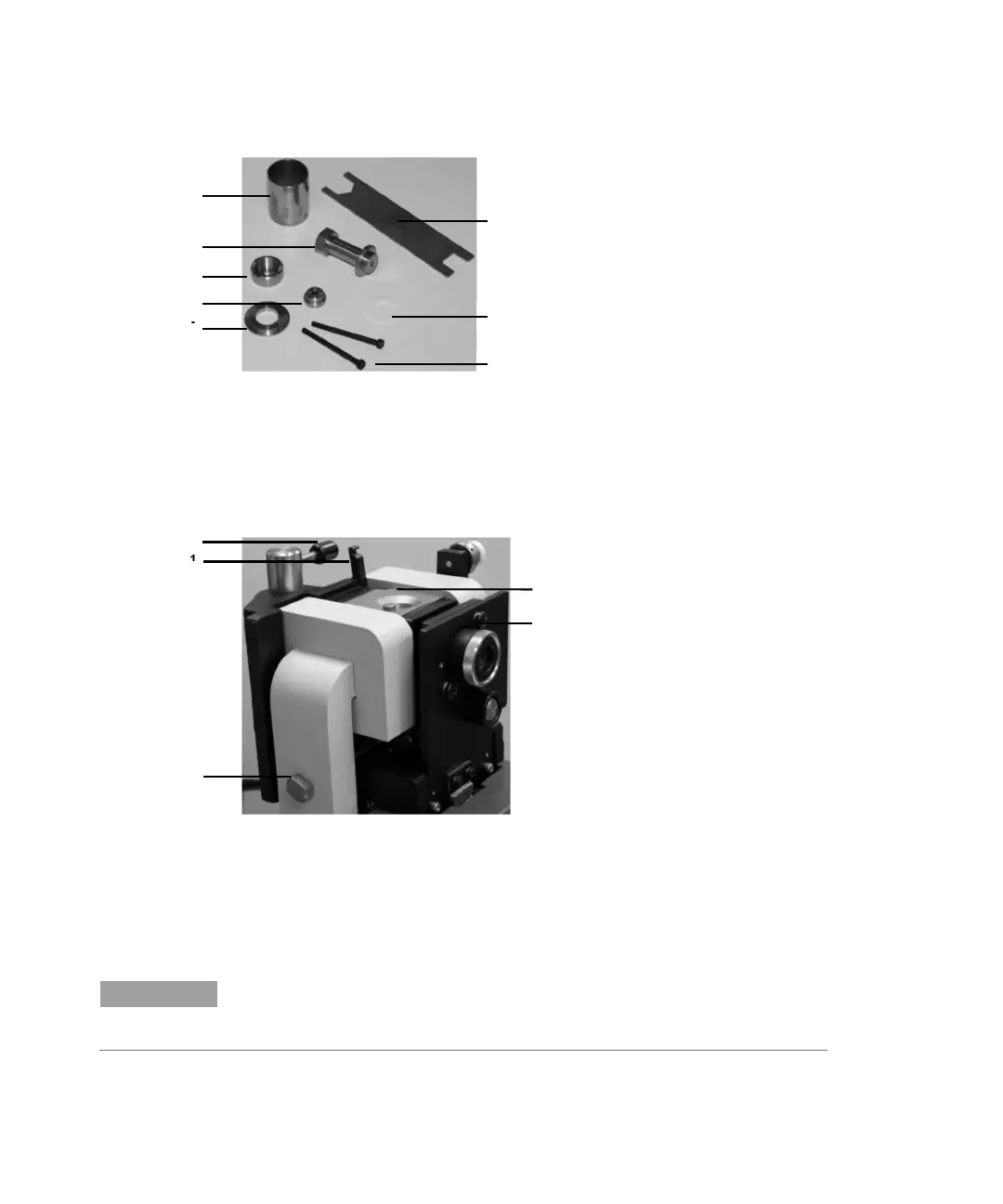

Figure 25. Zeeman electrode removal/replacement kit
1. Draw bolts (1 spare) 5. PTFE washer
2. Adaptor 6. Draw nut assembly
3. Spacer 7. Electrode pressure plate
4. Stainless steel collar 8. Removal/replacement tool
Figure 26. The Zeeman workhead
1. Latch 3. Center block
2. Magnet screw 4. Window
5. Lever
NOTE
Before removing the electrodes, remove the furnace from the sample
compartment as described on Page 40.
8
5
1
4
2
7
6
3
3
4
2
1
5
