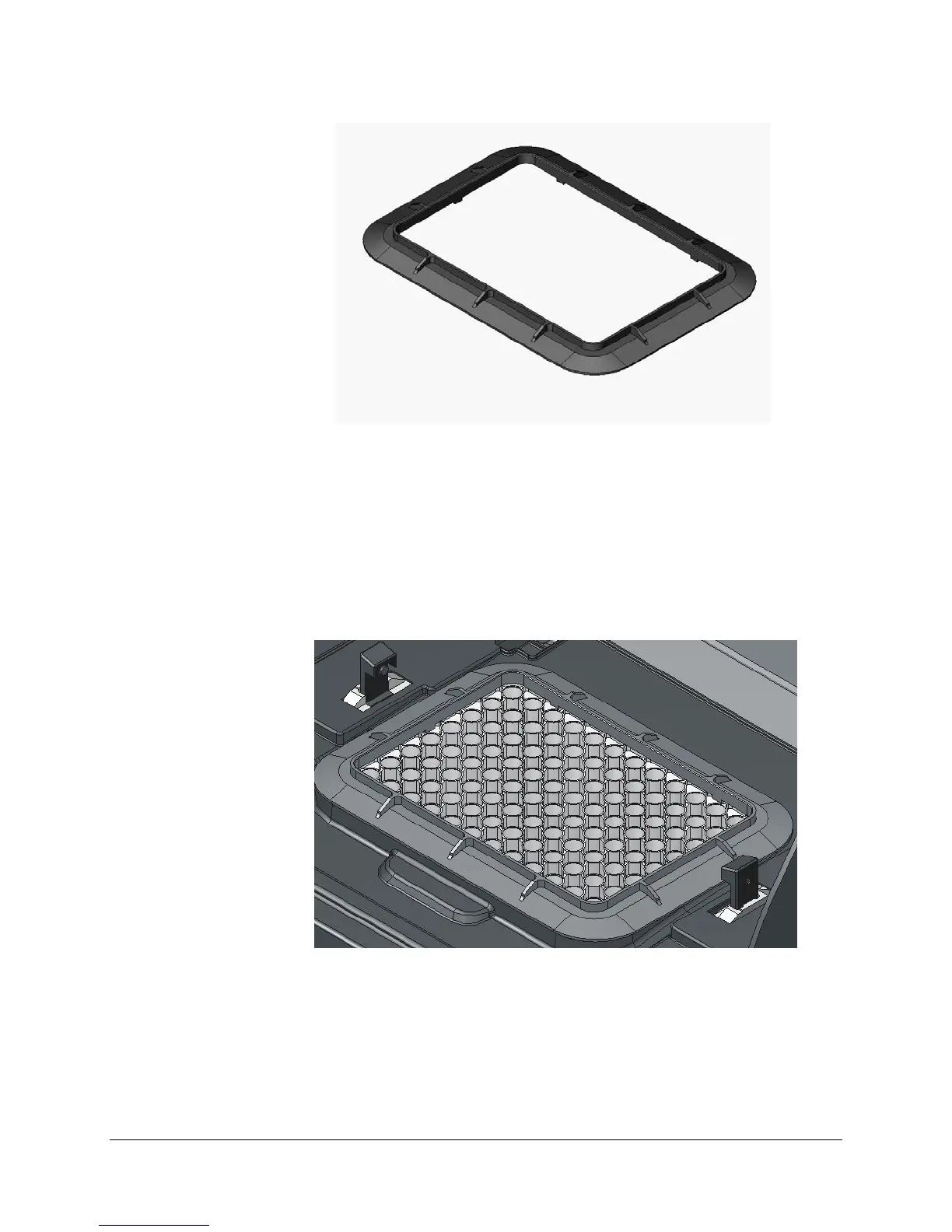

Figure 3 The Perfect Fit frame, shown in the proper orientation for installation.
To install the Perfect Fit frame, position the frame around the border of the
thermal block. When properly installed, each of the six notches on the
bottom of the frame will be positioned in the spaces between wells on the
perimeter of the thermal block surface. The Perfect Fit frame should be
seated on the thermal block platform with limited freedom of movement.
There are no audible sounds associated with the installation. (The frame
does not “click” into place.)
Figure 4 Appearance of the Perfect Fit frame when installed correctly on the
thermal block.
Mx3000P and Mx3005P QPCR Systems Setup and User’s Guide 25
