5 Using the Data Logger Functions
120 Agilent U1602B/U1604B User’s and Service Guide
Refer to the following two examples for resistance and DC voltage data
logger.

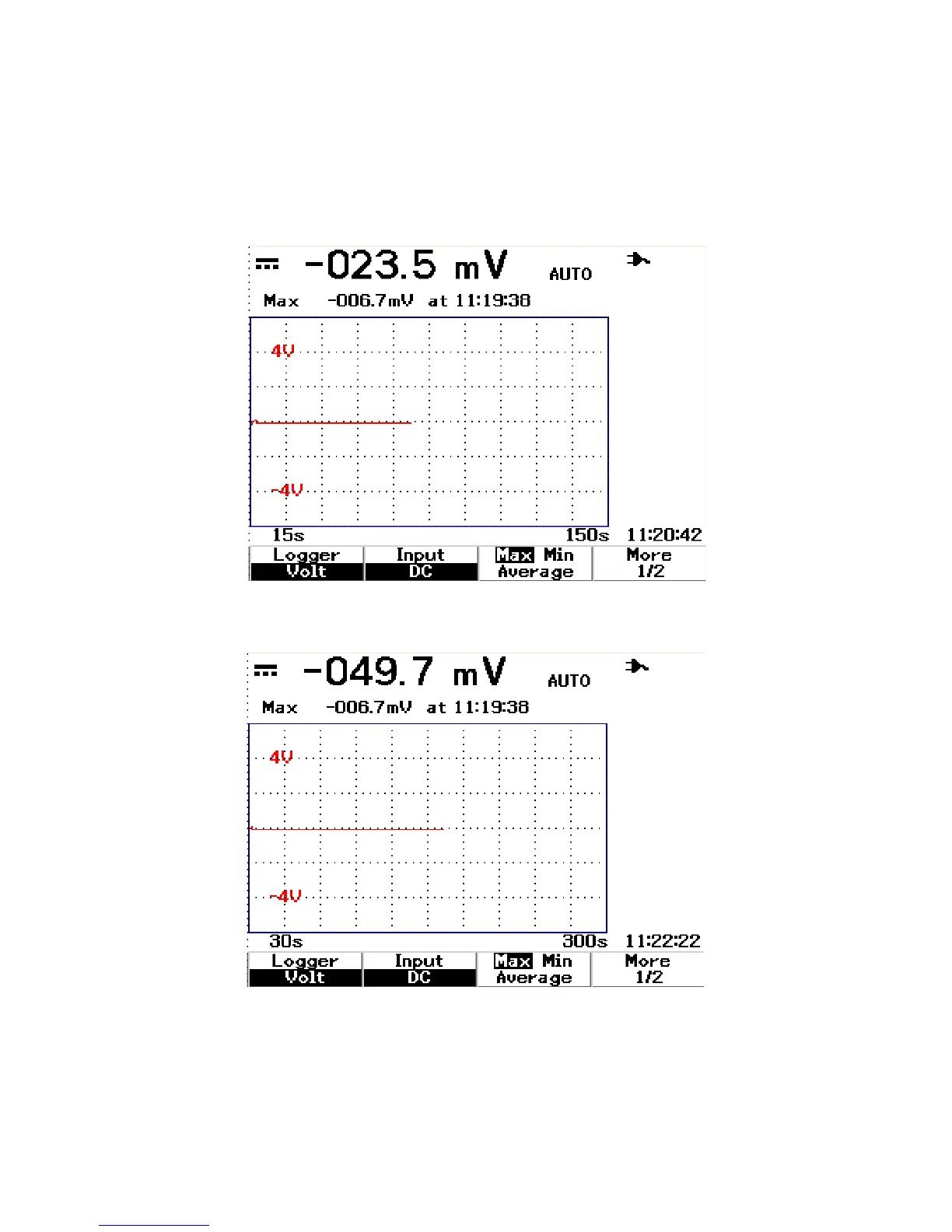

Figure 5-1 Maximum measurement is selected for DC voltage data recording. The initial
time base is 15 seconds
— 150 seconds.
Figure 5-2 After exceeding 150 seconds, the graph automatically compresses to half
screen and the time base changes to 30 seconds
— 300 seconds.
