8 General Disassemble
Agilent U1602B/U1604B User’s and Service Guide 169
To remove LCD display
1 Perform the following procedures:
• To remove stand
• To remove battery pack
• To remove handler
• To remove front and rear casing
• To dismantle system boards
2 Unscrew the four screw as located in the Figure 8- 14.

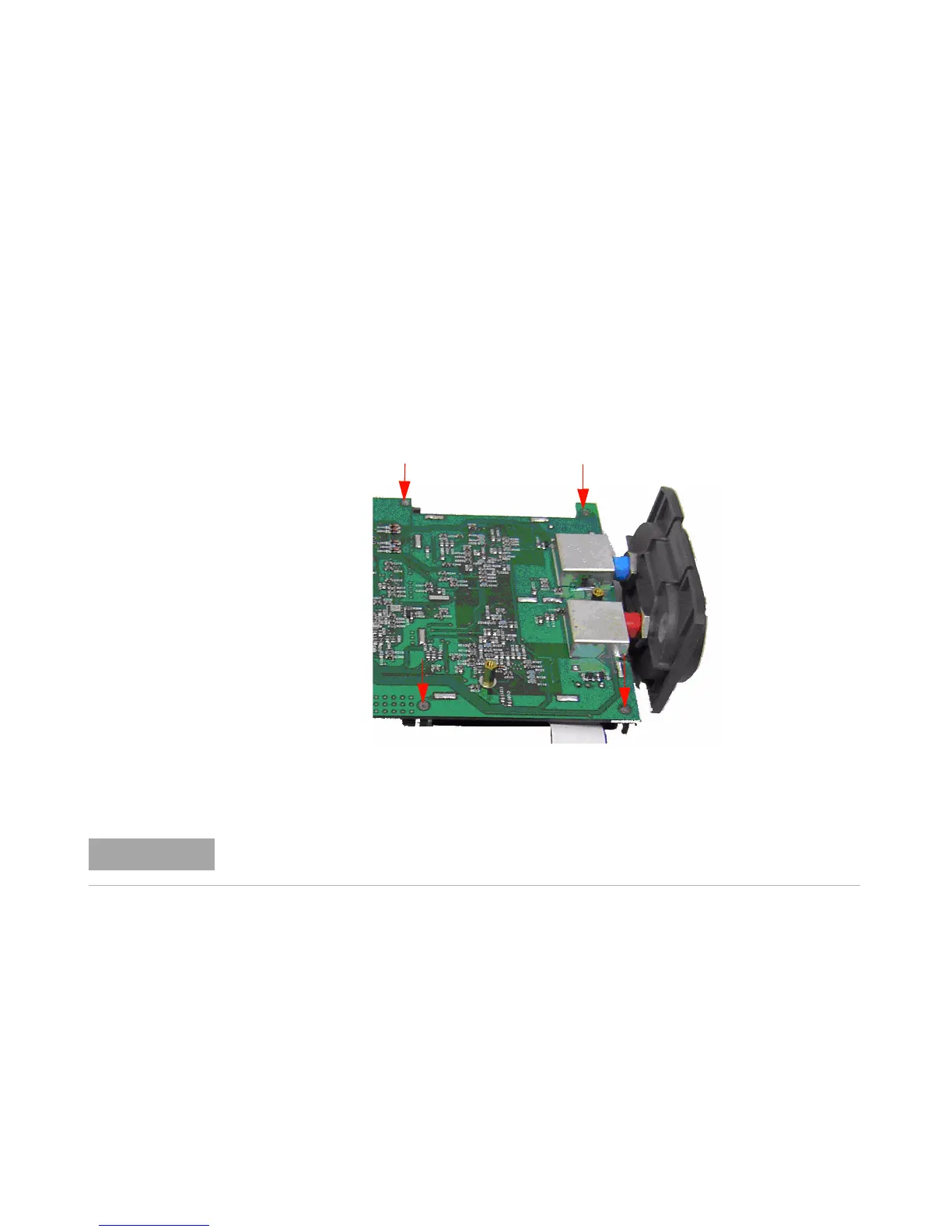

Figure 8-14 Remove four screw to dismantle the LCD display unit
NOTE
To re-assemble the instrument, follow the reverse instructions of this chapter.
