Fall Time
The fall time of a signal is the time difference between the crossing of the
upper threshold and the crossing of the lower threshold for a
negative- going edge.
Period
Period is the time period of the complete waveform cycle and it used to
measure the period of a waveform.

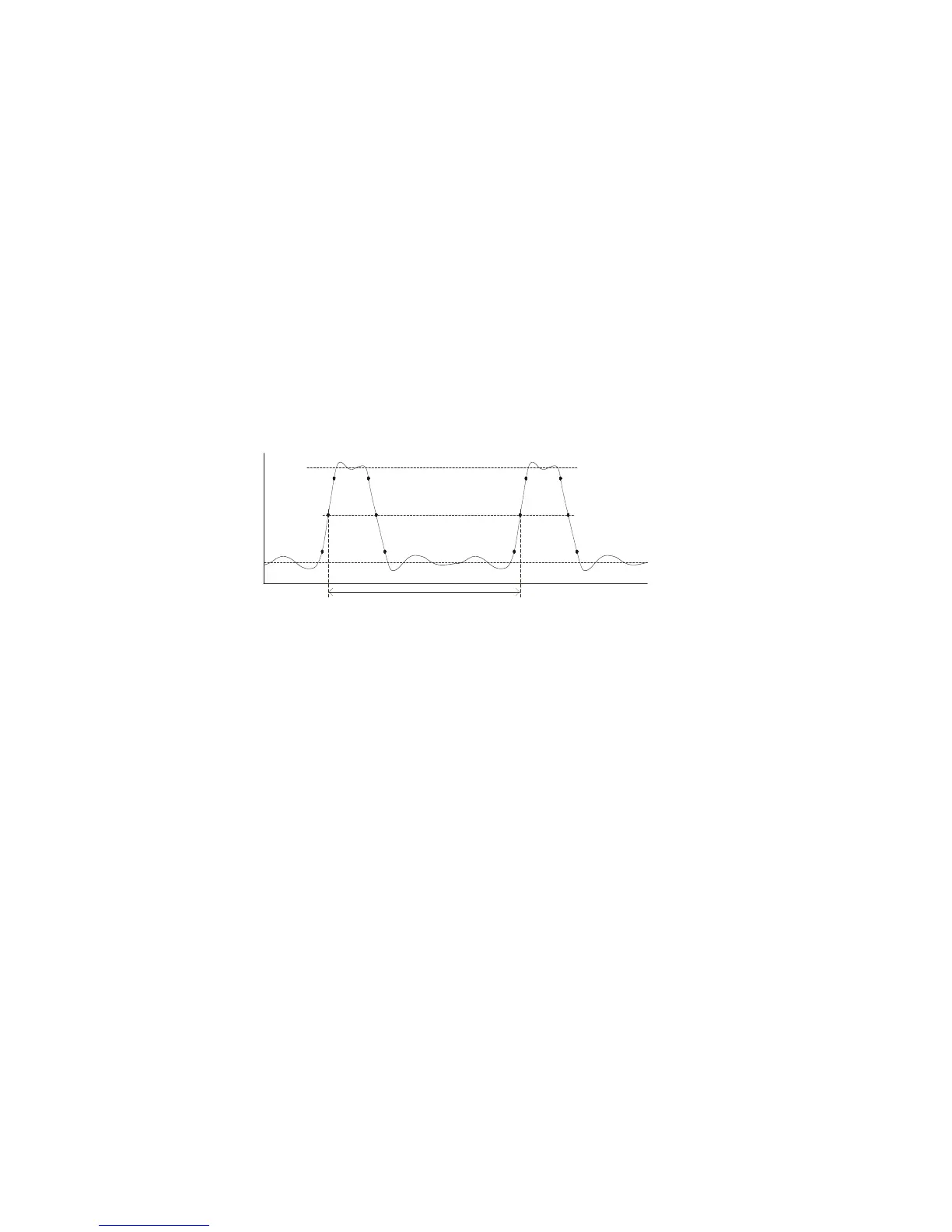

Figure 3-26 Period measurement
Voltage Automatic Measurements
Mean
The mean value of a measurement is the statistical average of the
measurement.
Mean Cycle
The mean cycle value of a measurement is the statistical average of the
measurement within a cycle period.
Amplitude
Amplitude is defined as the difference between the measurement’s Top
and Base values.
Period
Time
origin
line
50%
54800b24.cdr
To p
Base
