Front Panel and Displays Overview 2
Agilent U1602B/U1604B User’s and Service Guide 21
• Utility mode allows you to configure the instrument’s real time display,
auto power off, language selection for Quick Help, USB connectivity,
self- calibration and self- test operation.

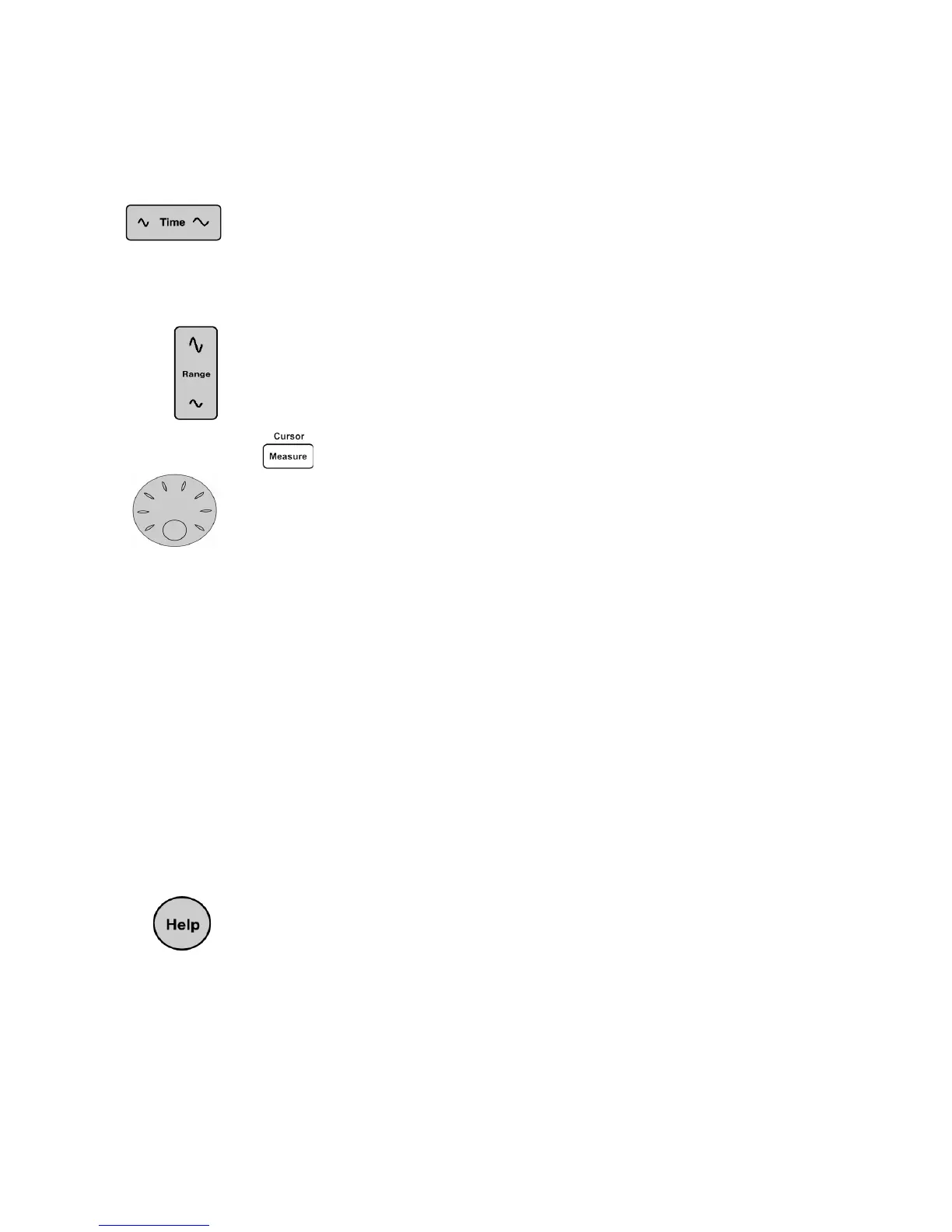

7 Measure Main function key to select a list of predefined
auto- measurement to be displayed on the screen.
8 Cursor Main function key to perform waveform measurement using X
or Y cursor functions. To access this function, press and hold the
button.
9 Trigger Main function key to determine the type of trigger control to
capture different types of waveform signals.
10 Run/Stop Main function key to force instrument to start scanning for
trigger. If the trigger mode is set to Normal, the display will not update
until a trigger is found. If the trigger mode is set to Auto, the
instrument looks for a trigger. If no trigger is found, it will
automatically trigger and display the signals immediately.
11 Save/Recall Main function key that allows you to save, recall and erase
the previously stored configuration setup and waveform. Connect a USB
flash memory to store or recall instrument’s configuration setup files
and waveforms. Simply unplug the USB flash memory without any
precaution before removing it.
12 Autoscale By pressing the Autoscale key, both the channels will be
activated and the input signal is scaled to the best display.
13 Range By pressing the Autoscale key in any auto- range meter mode,
the instrument allows you to select the range of your preference.
