Agilent Technologies U1604B User Manual

Using the Scope Functions 3
Agilent U1602B/U1604B User’s and Service Guide 35

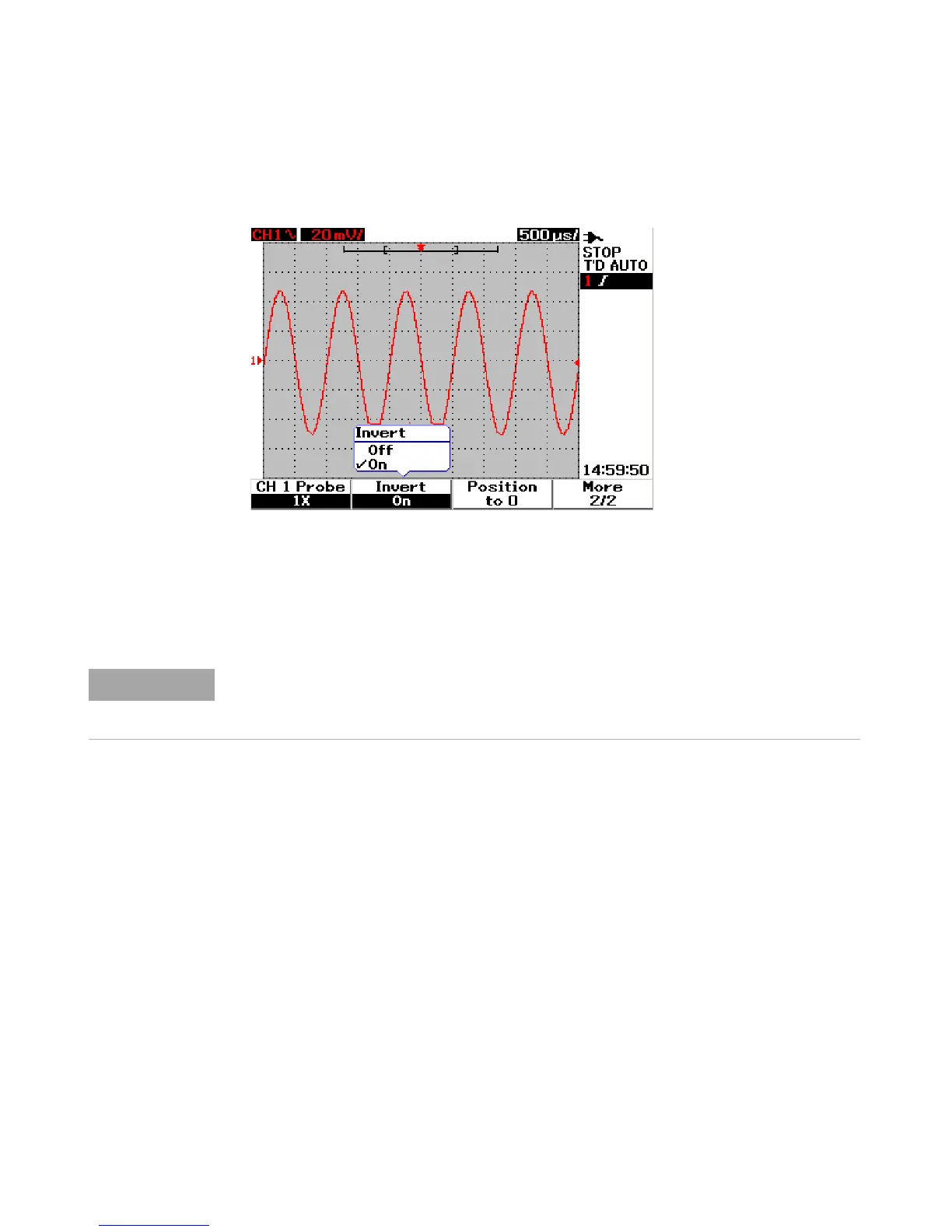

Figure 3-11 The waveform after inversion
NOTE
The Invert function does not affect triggering. If the instrument is set to trigger on a rising
edge, it remains set to trigger on the same edge and at the same point on the waveform
after the channel is inverted.
