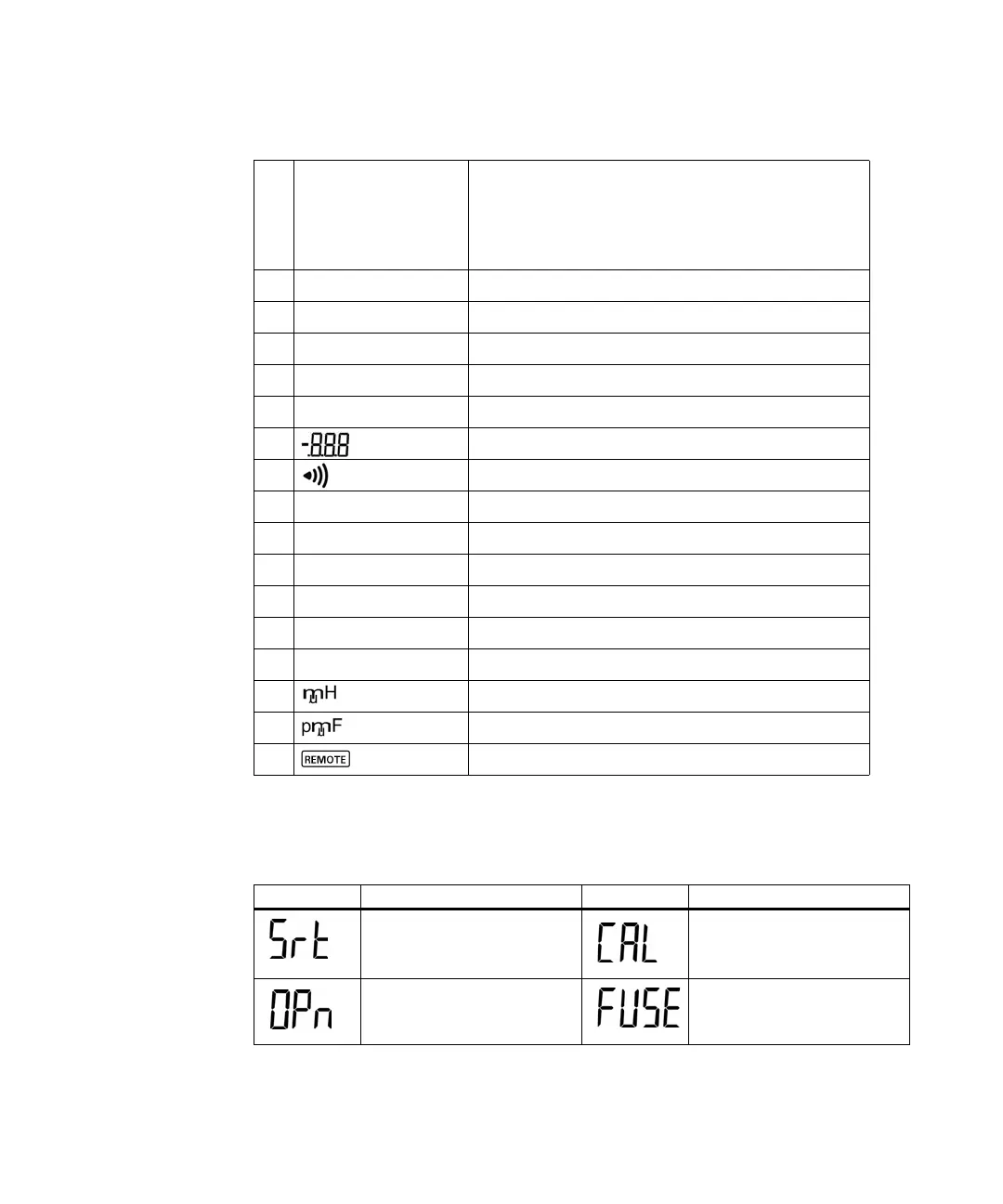

Special indication characters
9
MAX AVG MIN Static recording mode
MAX: Maximum reading
AVG: Average reading
MIN: Minimum reading
10 REL Relative mode
11 DH Data hold to hold the displayed digital value
12 q Phase angle indicator (only applicable for U1732B)
13 D Dissipation factor indicator
14 Q Quality factor indicator
15 Secondary display
16 Audible alert for tolerance and compare mode
17 % Unit for tolerance display (percentage)
18 deg Unit for phase angle (degree) (only applicable for U1732B)
19 kHz Unit for beeper frequency as setup mode
20 PAL Parallel mode indicator
21 SER Series mode indicator
22 mkW Unit for resistance (kΩ and MΩ)
23 Unit for inductance (µH and mH)
24 Unit for capacitance (pF, nF, µF, and mF)
25 Remote control
Descriptions Descriptions
Indicates short connectors Indicates calibration mode
Indicates open connectors
Indicates damaged or open
fuse
To Next Page
