2 Features and Functions
Communication (Optional Accessories)
The LCR meter can be adapted for communication capability. The optional
IR- USB package comes with a full optically- isolated cable and software.
This function enables you to record data easily. To use this function, you
will need a U1173A IR- to- USB cable (purchased separately) and the data
logging software. You can download the data logging software from the
Agilent web site at: http://www.agilent.com.find/hhTechlib. Refer to the
following procedure to set up the communication between your LCR meter
and personal computer (PC).
1 Connect one side of the cable to the meter with the Agilent logo facing
up and connect the USB connector to the PC.
2 Press the REMOTE key to enable this interface; the
annunciator will be shown on the display.
3 Run the Data Logger software to transfer the data to the PC for your
applications.
4 To remove the cable, press and pull the snap ends on each side of the
cable that is connected to the meter.

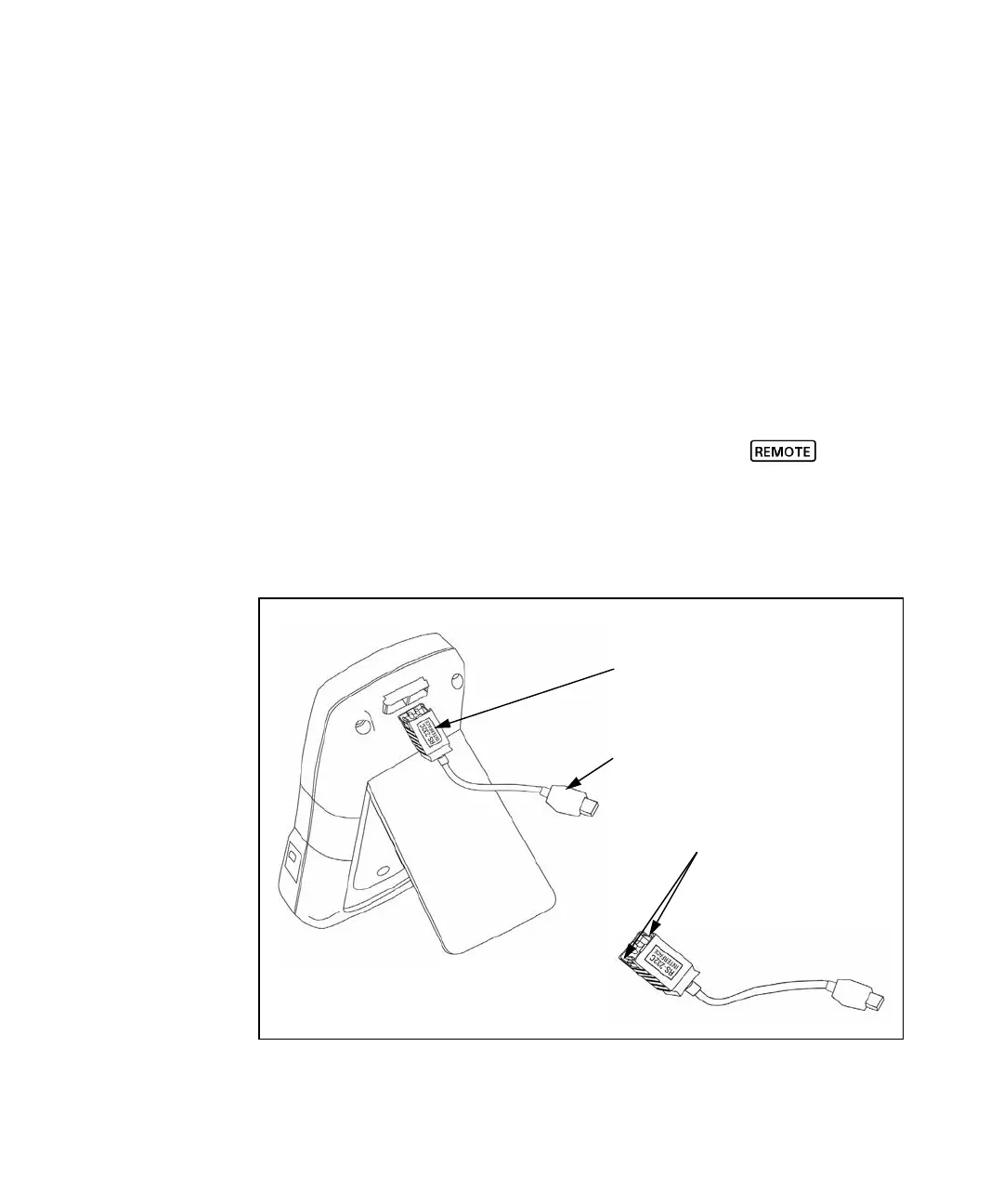

Figure 2-6 Cable connection for remote communication
Connect to the PC’s USB port
The side with the Agilent
logo must be facing up
Press the snaps to remove
the cable
