10 U1731B/U1732B User’s and Service Guide
2 Features and Functions
Inductance Measurement

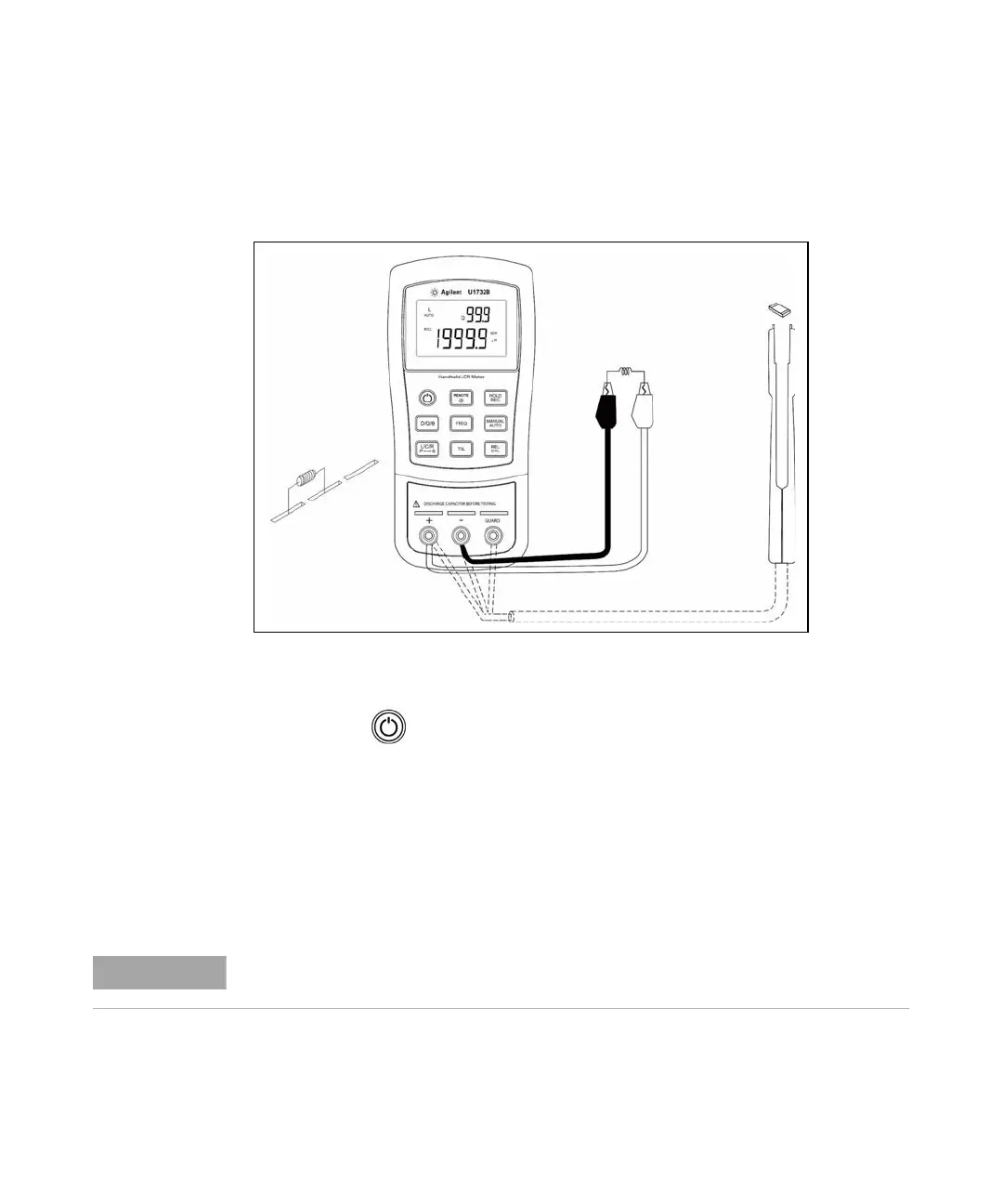

Figure 2-1 Inductance measurement
1 Press the key to power- on the LCR meter.
2 Press the L/C/R key to select inductance (L) measurement.
3 Insert an inductor into component receptacle socket or connect the test
clip to the component leads as required.
4 Press the FREQ key to select testing frequency.
5 Press the D/Q or D/Q/q key to select Q factor for secondary display.
6 Read the display readings for inductance value and quality factor.
It is recommended that you calibrate the LCR meter before testing to achieve optimum
precision for all L, C, and R measurements at either the highest or lowest ranges.
