SMD Tweezers Specifications
The SMD tweezers are used for L/C/R meter and built- in banana input
terminals. The SMD tweezers are much more convenient to be used to
measure the SMD components.
It is recommended to measure the surface mount device as well as the
maximum opening of the tweezers. The tweezers have one red, one black,
and one green 4 mm shrouded plugs, which are connected to the meter's
+(H- SENSE), - (L- SENSE) and GUARD ends, respectively. The length is
approximately 770 mm (30.3) (see Figure 4- 1).

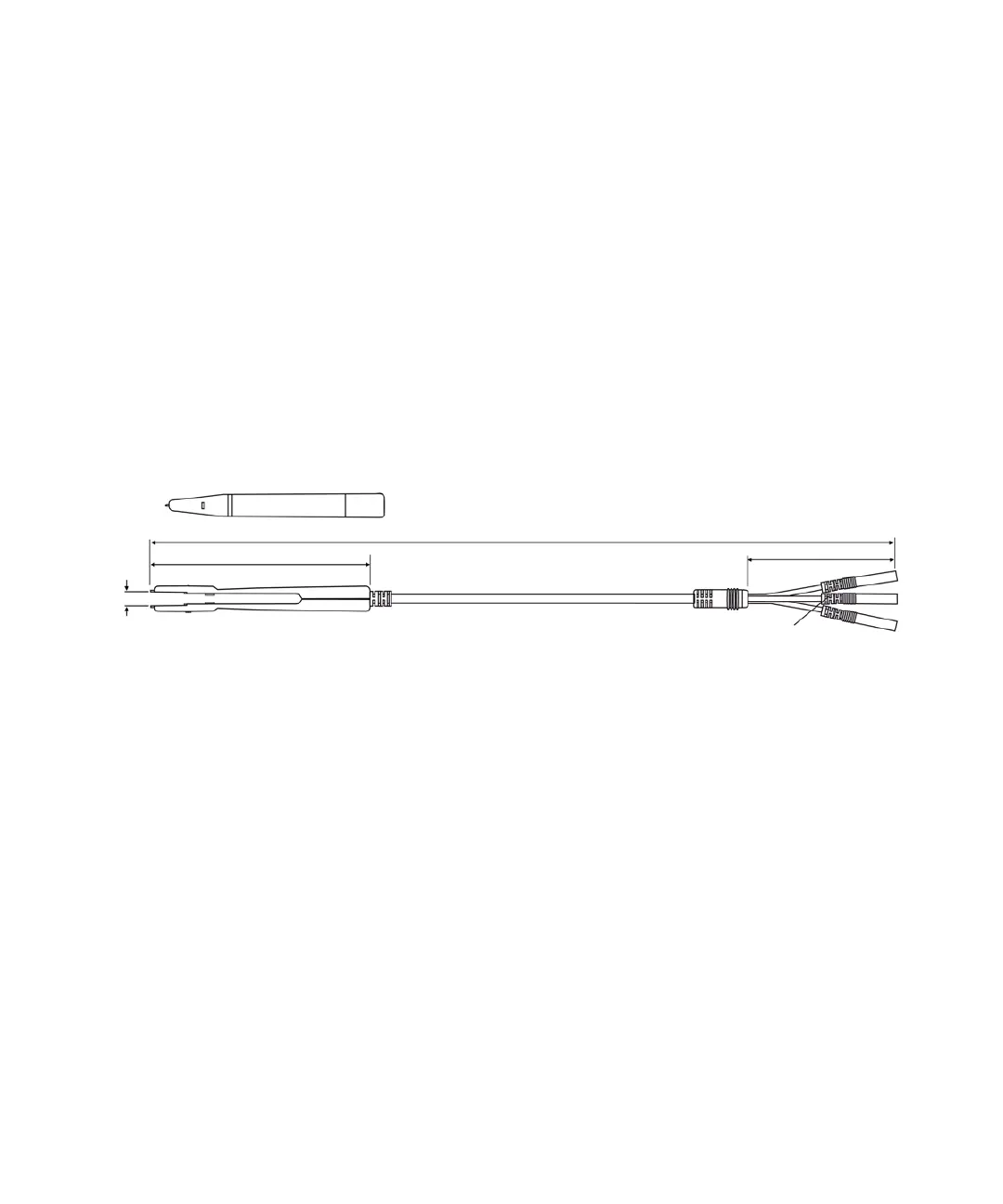

Figure 4-1 SMD tweezers
8.4
150
770 ± 20
107
Green
GUARD
Black Lo/S
Red Hi/S
